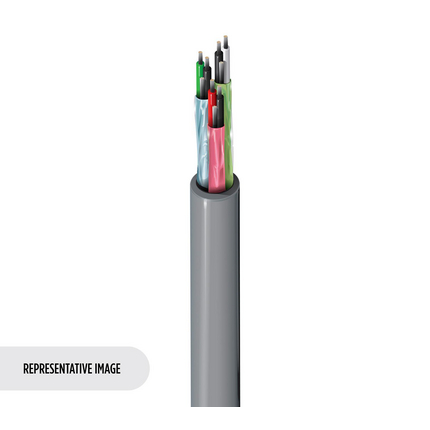

(4)Audio, Control & Instrument Cable, 3-Pair, 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, individually shielded pairs (100% coverage), 22 AWG stranded tinned copper drain wire, LSZH jacket, CPR Cca
| Suitable Applications: | low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
| AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|
| 22 | 7x30 | TC - Tinned Copper | 0.03 mm | 3 |
| Conductor Count: | 6 |
| Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
|---|---|---|---|
| PP - Polypropylene | 1.27 mm | 0.05 mm | 0.01 in |
| Number | Color |
|---|---|
| Pair 1 | Black & Red |
| Pair 2 | Black & White |
| Pair 3 | Black & Green |
| Table Notes: | Shielded pairs |
| Number | Color |
|---|---|
| Pair 1 | Red |
| Pair 2 | Green |
| Pair 3 | Blue |
| Type | Layer | Material | Material Trade Name | Coverage [%] | Thickness of Foil | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|---|---|
| Tape | 1 | Bi-Laminate (Alum+Poly) | Beldfoil® (Z-Fold®) | 100% | 9 / 12 µm | TC - Tinned Copper | AWG22/7 |
| Polyester |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 7.00 mm | 0.89 mm |
| Twists |
|---|
| 6.86 twist/ft |
| Description |
|---|
| 3 wires twisted to cable core |
| Individual Pair Nominal Shield DCR | Nominal Conductor DCR | Nominal Inner Shield DCR |
|---|---|---|
| 10.6 Ohm/1000ft | 49.2 Ohm/km | 34.8 Ohm/km |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 98.4 pF/m | 180.4 pF/m |
| Nominal Inductance | Nominal Pair Inductance |
|---|---|
| 0.18 µH/ft | 0.59 µH/m |
| Nominal Characteristic Impedance |
|---|
| 50 Ohm |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 66% |
| Element | Max. Recommended Current [A] |
|---|---|
| Conductor(s) | 2 A |
| Voltage Rating [V] |
|---|
| 300 V |
| Installation Temperature Range: | -15°C To +80°C |
| Storage Temperature Range: | -45°C To +80°C |
| Operating Temperature Range: | -20°C To +80°C |
| Operating Temp Range (Flexible Install): | -15°C To +80°C |
| Operating Temp Range (Fixed Install): | -45°C To +80°C |
| Oil Resistance: | IEC 60811-404 |
| Max. Pull Tension: | 180 N |
| Min. Bend Radius During Installation: | 70 mm |
| Min. Bend Radius/Minor Axis: | 2.75 in |
| CPR Euroclass: | Cca-s1,d1,a1 |
| CENELEC Compliance: | EN 50290-2-20 |
| Environmental Space: | Indoor - Euroclass Cca |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Indoor: | Yes |
| Suitability - Non-Halogenated: | Yes |
| Suitability - Sunlight Resistance: | Yes |
| IEC Flammability: | IEC 60332-1-2 |
| IEC 60754-1 - Halogen Amount: | Zero |
| IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: | 2.5 µS/mm |
| IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: | 4.3 |
| IEC 61034-2 - Smoke Density Min. Transmittance: | 60% |
| Plenum (Y/N): | No |
| Item # |
|---|
| 8777ELW.00305 |
| 8777ELW.01305 |
| Update and Revision: | Revision Number: 0.43 Revision Date: 02-03-2025 |
