87778 - Audio, Control & Instrument, #22-6pr, FEP, Indiv. Foil, PVDF Jkt, CMP

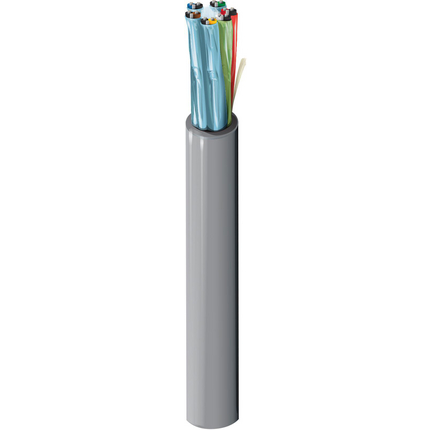

Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductor, FEP insulation, twisted pairs individually shielded with Beldfoil® (100% coverage), overall jacket per table below, 22 AWG stranded tinned copper drain wire.

Product Overview

Suitable Applications: extreme high temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Pairs
227x30TC - Tinned Copper0.03 in6
Conductor Count: 12
Insulation
MaterialNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.01 in
Color Chart
NumberColor
1Black & Red
2Black & White
3Black & Green
4Black & Blue
5Black & Yellow
6Black & Brown
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil® (Z-Fold®)100 %TC - Tinned Copper22Stranded
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVDF - Polyvinylidene Fluoride0.309 in0.014 in

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCRMax. Conductor DCR
11.3 Ohm/1000ft160 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
31 pF/ft67 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Impedance
Nominal Characteristic Impedance
50 Ohm
Delay
Max. Delay SkewNominal Velocity of Propagation (VP) [%]
69 ns/100m69 %
Current
Max. Recommended Current [A]
1.96 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -20°C To +150°C

Mechanical Characteristics

Bulk Cable Weight: 66 lbs/1000ft
Max Recommended Pulling Tension: 163 lbs
Min Bend Radius/Minor Axis: 3.25 in

Standards

NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
CSA Flammability: FT6
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 8778
Variants
Item #ColorUPC
87778 0021000Red612825216223
87778 002500Red612825216230
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.257 Revision Date: 04-28-2020
Date: 2005-04-01
No accessories are available for this product
