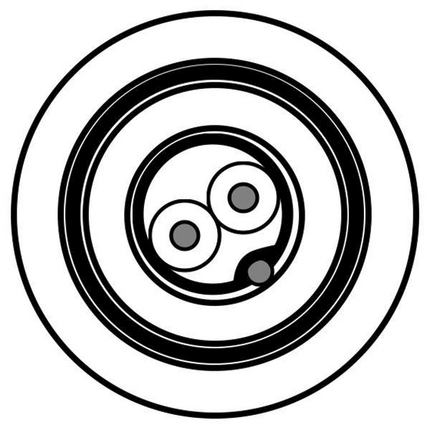

(109)Electronic, 1 Pair AWG 18 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil(s) or Copper Tape(s) shielding, LSZH / FRNC jacket , 300V, SWA
| Suitable Applications: | Instrumentation and computer cable; For data transmission applications |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 18 | 16x30 | TC - Tinned Copper | 1 |
| Conductor Count: | 2 |
| Total Number of Pairs: | 1 |
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PE - Polyethylene | 2.08 mm | 0.05 mm |
| Number | Color |
|---|---|
| Pair 1 | Black & Clear |
| Type | Material | Material Trade Name | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | TC - Tinned Copper | AWG20/7 |
| Material | Color | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | Chrome (RAL 7037) | 6 mm | 0.89 mm |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 10.4 mm | 1.3 mm |
| Type of Armor | Material | Thickness of Armoring Wires | Coverage Percentage |
|---|---|---|---|
| Steel Wire Armoring | Galvanized steel wire | 0.9 mm | Min. 95% |
| Nominal Conductor DCR |
|---|
| 21.3 Ohm/km |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 98 pF/m | 144.4 pF/m |
| Nominal Inductance |
|---|
| 0.591 µH/m |
| Nominal Characteristic Impedance |
|---|
| 60 Ohm |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 66% |
| Element | Max. Recommended Current [A] |
|---|---|
| Conductor(s) | 5.3 Amps per Conductor |
| Voltage Rating [V] |
|---|
| 300 V |
| Installation Temperature Range: | -15°C To +80°C |
| Storage Temperature Range: | -45°C To +80°C |
| Operating Temp Range (Flexible Install): | -15°C To +80°C |
| Operating Temp Range (Fixed Install): | -45°C To +80°C |
| Oil Resistance: | IEC 60811-404 |
| Min. Bend Radius During Installation: | 156 mm |
| CPR Euroclass: | Dca-s1,d1,a1 |
| CENELEC Compliance: | EN 50290-2-20 |
| Environmental Space: | Indoor, Indoor/Outdoor, Outdoor, Indoor/Outdoor - Euroclass Dca |
| Suitability - Sunlight Resistance: | Yes |
| IEC Flammability: | IEC 60332-3-24 |
| IEC 60754-1 - Halogen Amount: | Zero |
| IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: | 2.5 µS/mm |
| IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: | 4.3 |
| IEC 61034-2 - Smoke Density Min. Transmittance: | 60% |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 8760LS.00500 | Black | Reel | 500 m | 8719605018861 |
| 8760LS.001000 | Black | Reel | 1,000 m | 8719605018854 |
| Update and Revision: | Revision Number: 0.241 Revision Date: 02-20-2024 |
