8725NH - AUDIO ANALOG 4 PAIR 22AWG, BELDFOIL, LSZH


ANALOG AUDIO 4 PAIR 22AWG/0.34mm², BELDFOIL, LSZH

Product Overview

Suitable Applications: Audio, communication and intrumentation cable

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialConstruction n x D
207x28TC - Tinned Copper7x0.32 mm
Conductor Count: 8
Total Number of Pairs: 4
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene1.72 mm0.05 mm
Color Chart
NumberColor
Pair 1Black & Red
Pair 2White & Green
Pair 3White/Red & White/Black
Pair 4White/Green & White/Yellow
Color Chart 2
NumberColor
Pair 1Red
Pair 2Green
Pair 3 t/m 4Blue
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x DDrainwire Position
Bi-Laminate (Alum+Poly)Beldfoil®100%Stranded tinned copper227x0.25 mmUnder shielding foil
TapePolyester
Table Notes: Aluminum inside
Outer Shield Material
Material
Bi-Laminate (Alum+Poly)
Outer Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant)8.50 mm0.30 mm

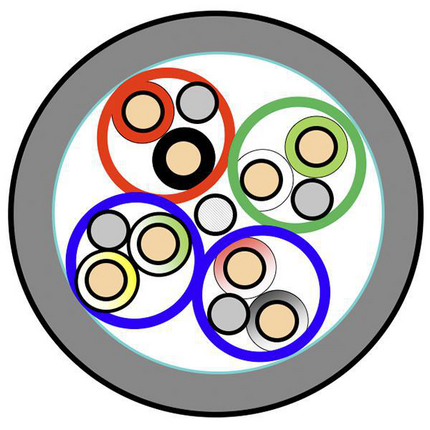

Construction and Dimensions

Cabling
Description
1 center filler + 4 cabled pairs

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
35.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
88 pF/m160 pF/m
Inductance
Nominal Inductance
0.62 µH/m
Impedance
Nominal Characteristic Impedance
56 Ohm
Current
Max. Recommended Current [A]
3.9 Amps per Conductor
Voltage
Voltage Rating [V]
300 V

Temperature Range

Storage Temp Range: -40°C to +70°C
Operating Temp Range (Fixed Install): -40°C To +70°C

Mechanical Characteristics

Max. Pull Tension: 50 N
Min Bend Radius During Installation: 85 mm
Min Setting Radius: 42.5 mm

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Eca
EU RoHS Compliance Date (yyyy-mm-dd): 2013-08-26

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
IEC 60754-1 (EN50267-1)- Halogen Amount: Zero
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH: 4.3
IEC 61034-2 (EN 61034-2) (VDE 0482-1034) - Smoke Density Min. Transmittance: IEC 61034-2

Part Number

Variants
Item #ColorPutup TypeLengthEAN
8725NH.00500GrayReel500 m8719605018779

History

Update and Revision: Revision Number: 0.157 Revision Date: 08-25-2020
Date: 2013-08-26
