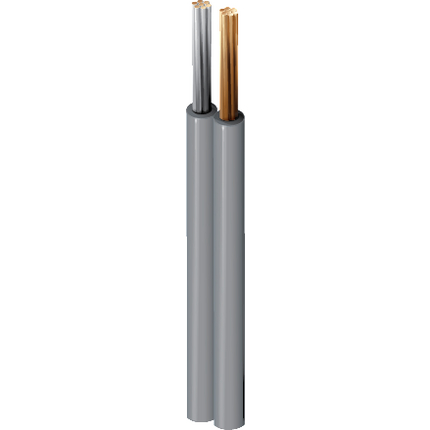

8649 - Speaker Cable, 2 Conductor 20 AWG BC, Unshielded, CM


2 Conductor 20 AWG stranded (7x28) ETP high-conductivity copper conductors, PVC insulation, parallel: (1) tinned, (1) bare, CM rated.

Product Overview

Suitable Applications: Speaker Cable

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
207x28High Conductivity Tinned Copper1
207x28BC - Bare Copper1
Conductor Count: 2
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.018 in
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal Diameter
PVC - Polyvinyl Chloride0.073 x 0.146 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
10.5 Ohm/1000ft
Inductance
Nominal Inductance
0.2 µH/ft
Current
Max. Recommended Current [A]
3.8 Amps per conductor @ 25°C
Voltage
Non-UL Voltage Rating
300 V RMS

Temperature Range

Non-UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 11 lbs/1000ft
Max. Pull Tension: 31 lbs
Min Bend Radius/Minor Axis: 1.5 in

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
8649 0601000ChromeReel1,000 ft612825213857
8649 3681000Clear, TransparentReel1,000 ft612825357797

History

Update and Revision: Revision Number: 0.259 Revision Date: 04-28-2020
Date: 2004-01-01
