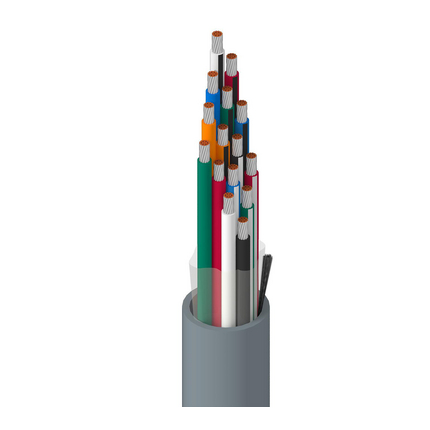

8623 - Electronic, 15 C #16 Str TC, PVC Ins, PVC Jkt




Electronic, 15 Conductor 16AWG (19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket

Product Overview

Suitable Applications: up to 600V analog signals ; up to 600V control ; line level audio; voice communications; panel wiring

Construction Details

Conductor
ElementNo. of ElementsSizeStrandingMaterial
Conductor(s)1516 AWG19x29TC - Tinned Copper
Insulation
ElementMaterialNom. ThicknessNom. Insulation DiameterColor Code
Conductor(s)PVC - Polyvinyl Chloride0.031 in (0.79 mm)0.121 in (3.07 mm)Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe
Outer Jacket
SeparatorMaterialNom. ThicknessNom. Diameter
PP - Polypropylene TapePVC - Polyvinyl Chloride0.060 in (1.5 mm)0.694 in (17.6 mm)
Overall Cable Diameter (Nominal): 0.694 in (17.6 mm)

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
Conductor(s)4.45 Ohm/1000ft19.5 pF/ft (64.0 pF/m)8.4 Amps per Conductor at 30ºC
Voltage
Voltage Rating
600 V

Mechanical Characteristics

Temperature
Operating
-30°C to +75°C
Bend Radius
Stationary Min.Installation Min.
6.9 in (180 mm)6.9 in (180 mm)
Max. Pull Tension: 600 lbs (270 kg)
Bulk Cable Weight: 288 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire: UL 1581 (VW-1), IEC 60332-1-2
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.502 Revision Date: 02-03-2025

Part Numbers

Variants
Item #ColorPutup TypeLengthUPCFootnote
8623 060500ChromeReel500 ft612825213628C
8623 0601000ChromeReel1,000 ft612825213604C
8623 0602000ChromeReel2,000 ft612825213611
8623 0605000ChromeReel5,000 ft612825213635C Z
Date: 2005-10-01
