8619 - Electronic, 19 C #18 Str TC, PVC Ins, PVC Jkt, CMG

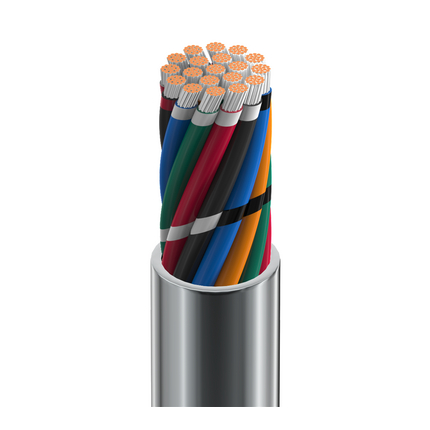

Electronic, 19 Conductor 18AWG (19x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)1819x30TC - Tinned Copper19
Conductor Count: 19
Insulation
ElementMaterialNominal Wall Thickness
Conductor(s)PVC - Polyvinyl Chloride0.018 in
Color Chart
NumberColor
1Black
2White
3Red
4Green
5Orange
6Blue
7White/Black Stripe
8Red/Black Stripe
9Green/Black Stripe
10Orange/Black Stripe
11Blue/Black Stripe
12Black/White Stripe
13Red/White Stripe
14Green/White Stripe
15Blue/White Stripe
16Black/Red Stripe
17White/Red Stripe
18Orange/Red Stripe
19Blue/Red Stripe
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.490 in0.045 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
26 pF/ft
Current
ElementMax. Recommended Current [A]
10C Temperature Rise2.5 Amps per conductor @ 25°C ambient
Voltage
UL DescriptionUL Voltage Rating
CMG300 V
UL AWM 2598300 V

Temperature Range

UL Temp Rating: 60°C (UL AWM Style 2598)
Operating Temp Range: -20°C to +60°C

Mechanical Characteristics

Bulk Cable Weight: 172 lbs/1000ft
Max Recommended Pulling Tension: 475 lbs
Min Bend Radius/Minor Axis: 5 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMG
CEC/C(UL) Specification: CMG
UL AWM Style: 2598
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 FT4 Loading
CSA Flammability: FT4
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
8619 060100ChromeReel100 ft612825213444
8619 060500ChromeReel500 ft612825213468
8619 0601000ChromeReel1,000 ft612825213451
8619 0605000ChromeReel5,000 ft612825213475
Footnote: C - CRATE REEL PUT-UP.
