8527 - Lead Wire, #12 Str TC, PVC Ins, TYPE MW MIL-W-76C-PVC 1000V 80C

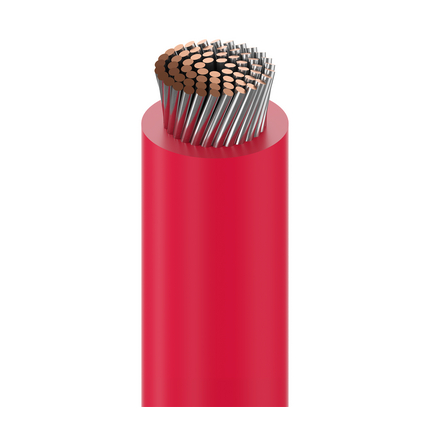

Low Temp Plastic Lead Wire, 12AWG (65x30) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1265x30TC - Tinned Copper1
Conductor Count: 1
Insulation
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.128 in0.021 in

Electrical Characteristics

Voltage
Voltage Rating [V]
1000 V

Temperature Range

Non-UL Temp Rating: 80°C

Standards

UL AWM Style Compliance: N/A
Military Compliance: MIL-W-76C

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-10-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: N/A

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
8527 010100BlackReel100 ft612825212867
8527 0101000BlackReel1,000 ft612825212874
8527 006100Blue, LightReel100 ft612825212812
8527 0061000Blue, LightReel1,000 ft612825212829
8527 0081000GrayReel1,000 ft612825212836
8527 005100Green, DarkReel100 ft612825212799
8527 0051000Green, DarkReel1,000 ft612825212805
8527 003100OrangeReel100 ft612825212768
8527 0031000OrangeReel1,000 ft612825212775
8527 002100RedReel100 ft612825212744
8527 0021000RedReel1,000 ft612825212751
8527 009100WhiteReel100 ft612825212843
8527 0091000WhiteReel1,000 ft612825212850
8527 0041000YellowReel1,000 ft612825212782
Footnote: P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'.
C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.256 Revision Date: 04-28-2020
Date: 2005-10-01
