8520 - Lead Wire, #14 Str TC, PVC Ins, TYPE MW MIL-W-76C-PVC 1000V 80C

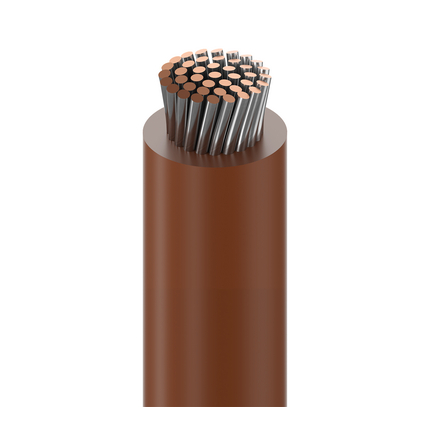

Low Temp Plastic Lead Wire, 14AWG (41x30) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1441x30TC - Tinned Copper1
Conductor Count: 1
Insulation
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.111 in0.018 in

Electrical Characteristics

Voltage
Voltage Rating [V]
1000 V

Temperature Range

Non-UL Temp Rating: 80°C

Standards

UL AWM Style: N/A
Military Specification: MIL-W-76C

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-10-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: N/A

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
8520 010100BlackReel100 ft612825210788
8520 0101000BlackReel1,000 ft612825210795
8520 013100Blue, DarkReel100 ft612825210801
8520 006100Blue, LightReel100 ft612825210733
8520 0061000Blue, LightReel1,000 ft612825210740
8520 001100BrownReel100 ft612825210658
8520 0011000BrownReel1,000 ft612825210665
8520 005100Green, DarkReel100 ft612825210719
8520 0051000Green, DarkReel1,000 ft612825210726
8520 003100OrangeReel100 ft612825210696
8520 0031000OrangeReel1,000 ft612825210702
8520 002100RedReel100 ft612825210672
8520 0021000RedReel1,000 ft612825210689
8520 009100WhiteReel100 ft612825210764
8520 0091000WhiteReel1,000 ft612825210771
8520 0181000White, Blue StripeReel1,000 ft
Footnote: P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'.
A - STOCKED STRIPE COLORS.

History

Update and Revision: Revision Number: 0.256 Revision Date: 04-28-2020
Date: 2005-10-01
Cabling Solutions for Industrial Applications
No accessories are available for this product
