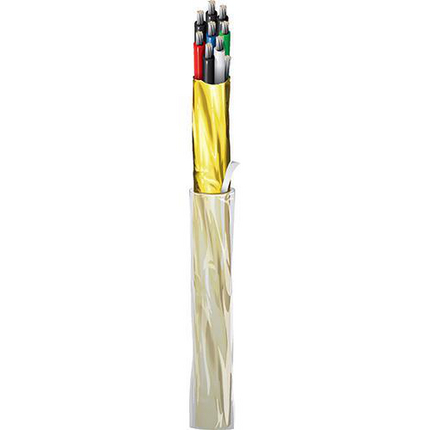

(4)High Temperature Electronic, 8 Pair 20AWG (7x28) Tinned Copper, ETFE Insulation, Overall Beldfoil® Shield, ETFE Outer Jacket
| Suitable Applications: | extreme high/low temperature environments; chemical resistant; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); instrumentation |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 20 | 7x28 | TC - Tinned Copper | 8 |
| Conductor Count: | 16 |
| Total Number of Pairs: | 8 |
| Material | Material Trade Name | Nominal Wall Thickness |
|---|---|---|
| ETFE - Ethylene Tetrafluoroethylene | Tefzel® | 0.015 in |
| Number | Color |
|---|---|
| 1 | Black & Red |
| 2 | Black & White |
| 3 | Black & Green |
| 4 | Black & Blue |
| 5 | Black & Yellow |
| 6 | Black & Brown |
| 7 | Black & Orange |
| 8 | Red & White |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Kapton®) | Beldfoil® | 100% | TC - Tinned Copper | 22 | 7x30 |
| Material | Material Trade Name | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| ETFE - Ethylene Tetrafluoroethylene | Tefzel® | 0.439 in | 0.025 in |
| Nominal Conductor DCR |
|---|
| 9.3 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 23 pF/ft | 40 pF/ft |
| Nominal Inductance |
|---|
| 0.186 µH/ft |
| Nominal Characteristic Impedance |
|---|
| 73 Ohm |
| Max. Recommended Current [A] |
|---|
| 4 Amps per Conductor at 25ºC |
| Non-UL Voltage Rating |
|---|
| 300 V RMS |
| UL Temp Rating: | 150°C |
| Operating Temperature Range: | -60°C To +150°C |
| Bulk Cable Weight: | 115 lbs/1000ft |
| Max. Pull Tension: | 224 lbs |
| Min. Bend Radius/Minor Axis: | 4.5 in |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| MII Order #39 (China RoHS): | Yes |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | No |
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 85168 3681000 | Clear, Transparent | Reel | 1,000 ft | 612825210641 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Notes: | Tefzel and Kapton are DuPont trademarks. |
| Update and Revision: | Revision Number: 0.385 Revision Date: 02-03-2025 |
