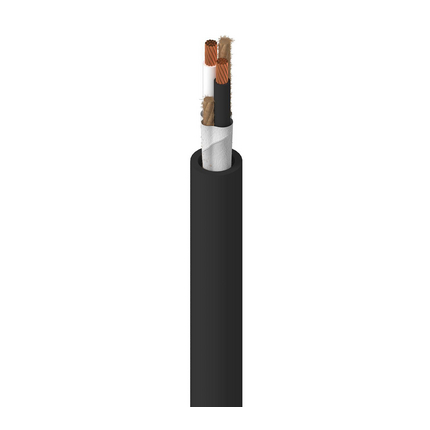

8472 - Portable Cordage, 2 C #16 Str BC, EPDM Ins, Rubber Jkt, UL Type SJ


Portable Cordage, 2 Conductor 16AWG (65x34) Bare Copper, EPDM Insulation, Rubber Outer Jacket, UL Type SJ

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Conductor(s)216 AWG65x34BC - Bare Copper
Insulation
ElementMaterialNom. ThicknessNom. Insulation DiameterColor Code
Conductor(s)EPDM - Ethylene Propylene Diene Monomer0.033 in (0.84 mm)0.123 in (3.12 mm)Black, White
Outer Shield
Material
No Shield
Outer Jacket
SeparatorMaterialNom. ThicknessNom. Diameter
Paper TapeSBR - Styrene Butadiene Rubber0.0345 in (0.876 mm)0.315 in
Overall Cable Diameter (Nominal): 0.315 in

Electrical Characteristics

Electricals
Nom. Conductor DCRMax. Current
4.4 Ohm/1000ft13 Amps per Conductor at 25ºC (10 Amps over 50 ft)
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
60°C-20°C To +60°C
Bend Radius
Stationary Min.Installation Min.
3.15 in (80.0 mm)3.15 in
Max. Pull Tension: 65 lbs (29 kg)
Bulk Cable Weight: 51 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: FT2
NEC / UL Compliance: Article 400, SJ
AWM Compliance: SJ
CEC / C(UL) Compliance: LL7874
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Paper Tape

History

Update and Revision: Revision Number: 0.383 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorPutup TypeLengthUPC
8472 010250BlackReel250 ft612825208594
Date: 2005-10-13
