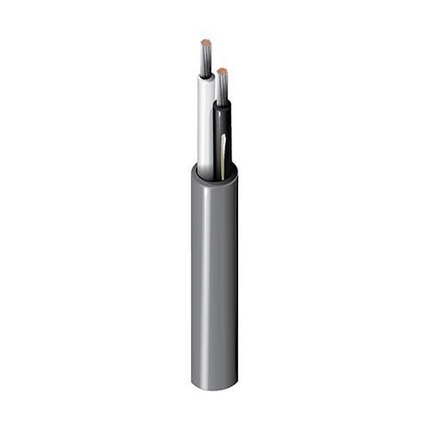

(10)Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, PE Insulation, LSZH Outer Jacket, CPR B2ca
| Suitable Applications: | low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 16 | 19x29 | TC - Tinned Copper | 1 |
| Conductor Count: | 2 |
| Total Number of Pairs: | 1 |
| Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
|---|---|---|---|
| PE - Polyethylene | 2.67 mm | 0.05 mm | 0.018 in |
| Number | Color |
|---|---|
| Pair 1 | Black & White |
| Material |
|---|
| No Shield |
| Nominal Wall Thickness |
|---|
| 0.89 mm |
| Material |
|---|
| No Shield |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 7.1 mm | 0.89 mm |
| Twists |
|---|
| 6 twist/ft |
| Description |
|---|
| 1 pair covered with a polyester foil |
| Nominal Conductor DCR |
|---|
| 14.7 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
|---|
| 52 pF/m |
| Nominal Inductance | Nominal Pair Inductance |
|---|---|
| 0.17 µH/ft | 0.62 µH/m |
| Element | Max. Recommended Current [A] |
|---|---|
| Conductor | 7.1 Amps per Conductor |
| UL Voltage Rating | Voltage Rating [V] |
|---|---|
| 300 V RMS | 300 V |
| Installation Temp Range: | -15°C To +80°C |
| Storage Temp Range: | -45°C To +80°C |
| Operating Temp Range: | -20°C To +75°C |
| Operating Temp Range (Flexible Install): | -15°C To +80°C |
| Operating Temp Range (Fixed Install): | -45°C To +80°C |
| Oil Resistance: | IEC 60811-404 |
| Bulk Cable Weight: | 32 lbs/1000ft |
| Max. Pull Tension: | 127 N |
| Min Bend Radius During Installation: | 71 mm |
| Min Bend Radius/Minor Axis: | 2.5 in |
| NEC/(UL) Compliance: | CMG |
| CEC/C(UL) Compliance: | CMG |
| CPR Euroclass: | B2ca-s1,d1,a1 |
| CENELEC Compliance: | EN 50290-2-27 |
| Other Compliance: | BS 7655 section 6.1 table 1, LTS 3 |
| Environmental Space: | Indoor - Euroclass B2ca |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2005-01-01 |
| Suitability - Indoor: | Yes |
| Suitability - Non-Halogenated: | Yes |
| Suitability - Sunlight Resistance: | Yes |
| C(UL) Flammability: | FT4 |
| UL Flammability: | UL1685 FT4 Loading |
| IEC Flammability: | IEC 60332-1-2 and IEC 60332-3-24 |
| IEC 60754-1 (EN50267-1)- Halogen Amount: | Zero |
| IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max. Conductivity: | 2.5 µS/mm |
| IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH: | 4.3 |
| IEC 61034-2 (EN 61034-2) (VDE 0482-1034) - Smoke Density Min. Transmittance: | 60% |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | No |
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| 8471NH.01500 | Blue | Reel | 500 m | 8719605018359 |
| 8471NH.00152 | Chrome | Reel | 152 m | 8719605018328 |
| 8471NH.00305 | Chrome | Reel | 305 m | 8719605018335 |
| 8471NH.00500 | Chrome | Reel | 500 m | 8719605018342 |
| 8471NH.001000 | Chrome | Reel | 1,000 m | 8719605018304 |
| 8471NH.001500 | Chrome | Reel | 1,500 m | 8719605018311 |
| 8471NH.021000 | Green | Reel | 1,000 m | 8719605148087 |
| 8471NH.03500 | White | Reel | 500 m | 8719605161666 |
| 8471NH.031000 | White | Reel | 1,000 m | 8719605161680 |
| Update and Revision: | Revision Number: 0.273 Revision Date: 12-22-2020 |
