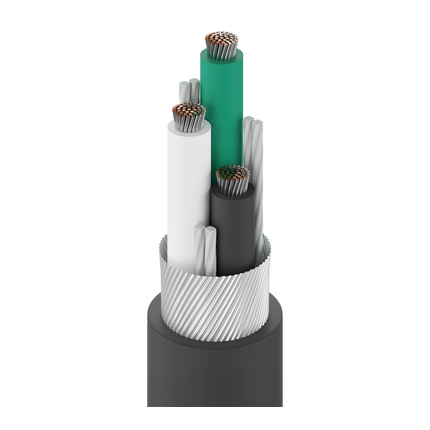

8453 - Portable Cordage, 3 C #18 Str TC, EPDM Ins, Rubber Jkt, UL Type SV


Portable Cordage, 3 Conductor 18AWG (41x34) Tinned Copper, EPDM Insulation, Rubber Outer Jacket, UL Type SV

Product Overview

Suitable Applications: Junior light-duty vacuum cord(300V), Other light-duty equipements

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Conductor(s)318 AWG41x34TC - Tinned Copper
Insulation
ElementMaterialNom. ThicknessColor Code
Conductor(s)EPDM - Ethylene Propylene Diene Monomer0.018 in (0.46 mm)Black, White, Green
Outer Jacket
SeparatorMaterialNom. ThicknessNom. Diameter
Cotton ServeSBR - Styrene Butadiene Rubber0.036 in (0.91 mm)0.256 in (6.50 mm)
Overall Cable Diameter (Nominal): 0.256 in (6.50 mm)

Electrical Characteristics

Electricals
ElementMax. Current
Conductor(s)10 Amps per conductor @ 25°C, 7 Amps per conductor @ 25°C over 50 ft
7 Amps per conductor @ 25°C over 50 ft.
Voltage
UL Voltage Rating
300 V (SV)

Mechanical Characteristics

Temperature
UL TemperatureOperating
60°C-40°C to +60°C
Bend Radius
Stationary Min.Installation Min.
2.6 in (66 mm)2.6 in (66 mm)
Max. Pull Tension: 62 lbs (28 kg)
Bulk Cable Weight: 42 lbs/1000ft (63 kg/km)

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire: FT2
NEC / UL Compliance: SV
AWM Compliance: SV
CEC / C(UL) Compliance: SV
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.365 Revision Date: 06-23-2022

Part Numbers

Variants
Item #ColorPutup TypeLengthUPC
8453 010100BlackReel100 ft612825207818
8453 010500BlackReel500 ft612825207825
