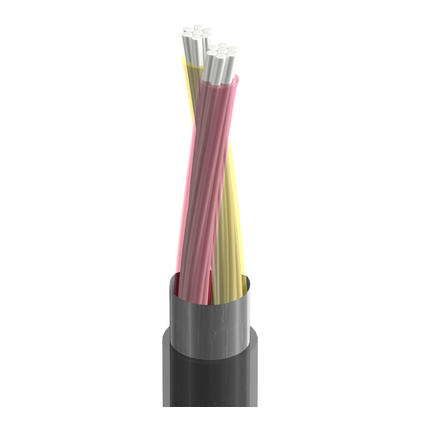

83952 - Type KX Thermocouple, 1 Pr #20 Str, FEP Ins Yel, Red, Yellow FEP Jkt, 300V CL3P 200C PLTC SUN RES


Type KX Thermocouple, 1 Pair 20AWG (7x28) Chromel+Alumel, FEP Insulation Yel, Red Color Code, Yellow FEP Outer Jacket, CL3P 200C PLTC SUN RES

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
207x28Chromel1
207x28Alumel1
Conductor Count: 2
Total Number of Pairs: 1
Total Number of Triads: N/A
Insulation
MaterialNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.01 in
Color Chart
NumberColor
ChromelYellow
AlumelRed
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/Polyester/AluminumBeldfoil®100 %TC - Tinned Copper227x30 mm
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.145 in0.012 in

Electrical Characteristics

Conductor DCR
ElementNominal Conductor DCRNominal Outer Shield DCR
Chromel387 Ohm/1000ft12 Ohm/1000ft
Alumel156 Ohm/1000ft

Temperature Range

UL Temp Rating: 200°C
Operating Temp Range: -70°C To +200°C

Mechanical Characteristics

Bulk Cable Weight: 18 lbs/1000ft
Min Bend Radius/Minor Axis: 1.5 in

Standards

NEC/(UL) Specification: CL3P, PLTC
Data Category: MC 96.1-1982 Type KX
ANSI Compliance: MC 96.1-1982 Type KX

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

Other Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorUPCLengthFootnote
83952 0041000Yellow6128252060021,000 ftC
83952 004500Yellow612825206019500 ftC
83952 0045000Yellow6128252060265,000 ftC Z
Footnote: C - CRATE REEL PUT-UP.
Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Product Notes

Notes: Chromel & Alumel = ""Chromel and Alumel are Hoskins Manufacturing Company trademarks.""

History

Update and Revision: Revision Number: 0.296 Revision Date: 09-10-2019
Date: 2005-04-01
