83905 - Type K Thermocouple, 1 Pr #20 Sol, FEP Ins Yel, Red, Brn FEP Jkt, CL3P 200C PLTC SUN RES

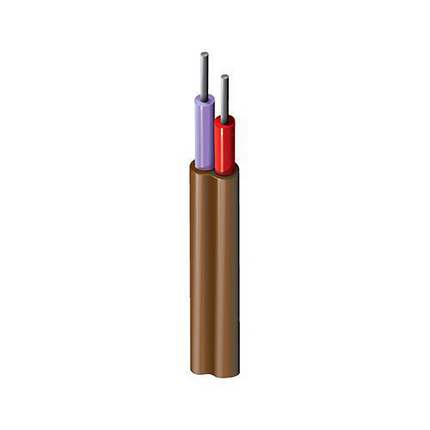

Type K Thermocouple, 1 Pair 20AWG (Solid) Chromel+Alumel, FEP Insulation Yel, Red Color Code, Brown FEP Outer Jacket, CL3P 200C PLTC SUN RES

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
20SolidChromel1
20SolidAlumel1
Conductor Count: 2
Total Number of Pairs: 1
Total Number of Triads: N/A
Insulation
MaterialNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.01 in
Color Chart
NumberColor
ChromelYellow
AlumelRed
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.076 x 0.128 in0.012 in

Electrical Characteristics

Conductor DCR
ElementNominal Conductor DCR
Chromel420 Ohm/1000ft
Alumel169 Ohm/1000ft

Temperature Range

UL Temp Rating: 200°C
Operating Temp Range: -70°C To +200°C

Mechanical Characteristics

Bulk Cable Weight: 13 lbs/1000ft
Min Bend Radius/Minor Axis: 1.25 in

Standards

NEC/(UL) Specification: CL3P, PLTC
Data Category: MC 96.1-1982 Type K
ANSI Compliance: MC 96.1-1982 Type K

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

Other Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorUPCLengthFootnote
83905 001100Brown612825205852100 ft
83905 0011000Brown6128252058691,000 ftC
83905 001500Brown612825205876500 ft
Footnote: C - CRATE REEL PUT-UP.
