83752 - Electronic, 2 C #14 Str TC, FEP Ins, OS+TC Brd, Red FEP Jkt, CMP FPLP

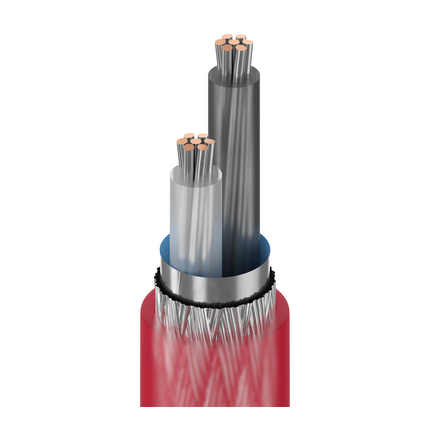

High Temperature Electronic, 2 Conductor 14AWG (7x22) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, Red FEP Outer Jacket, CMP FPLP

Product Overview

Suitable Applications: fire alarms; extreme high/low temperature environments; indoor/outdoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)

Construction Details

Conductor
ElementNumber of ElementAWGStrandingMaterial
Conductor(s)2147x22TC - Tinned Copper
Insulation
ElementMaterialThickness [in]Color
Conductor(s)FEP - Fluorinated Ethylene Propylene0.016Black, White
Outer Shield Material
TypeMaterialCoverage
Tape + BraidAlum / Poly + TC - Tinned Copper100% + 85%
Outer Jacket Material
MaterialNominal Wall ThicknessNominal Diameter
FEP - Fluorinated Ethylene Propylene0.015 in0.267 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Max. Current
Conductor(s)2.3 Ohm/1000ft30 pF/ft52 pF/ft18 Amps per conductor @ 25°C ambient
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL RatingOperating
200°C-70°C to +200°C
Bend Radius
Stationary Min.
2.75 in
Max Recommended Pulling Tension: 153 lbs

Standards and Compliance

Sustainability: CA Prop 65 (CJ for Wire and Cable)
Flammability / Fire Resistance: NFPA 262, FT6
NEC / UL Compliance: Article 760, Article 800, CMP, FPLP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS 2

Product Notes

Notes: Gas Resistant

History

Update and Revision: Revision Number: 0.299 Revision Date: 05-29-2020
