83702 - Electronic, 2 C #16 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP

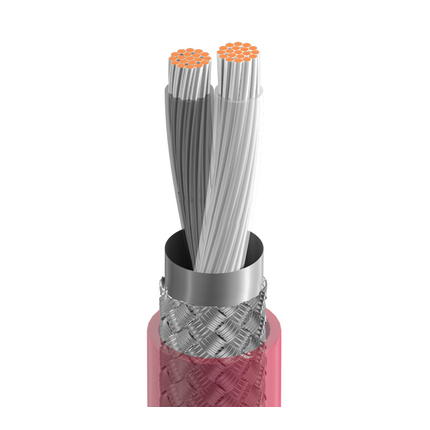

High Temperature Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP

Product Overview

Suitable Applications: extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)1619x29TC - Tinned Copper2
Conductor Count: 2
Total Number of Pairs: 1
Insulation
ElementMaterialMaterial Trade NameNominal Wall Thickness
Conductor(s)FEP - Fluorinated Ethylene PropyleneTeflon®0.007 in
Color Chart
NumberColor
1Black
2White
Outer Shield Material
TypeLayerMaterialMaterial Trade NameCoverage [%]
Tape1Alum / PolyBeldfoil®100 %
Braid2TC - Tinned Copper85 %
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall Thickness
FEP - Fluorinated Ethylene PropyleneTeflon®0.196 in0.014 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
4.43 Ohm/1000ft2.67 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
35 pF/ft63 pF/ft
Current
Max. Recommended Current [A]
6.4 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -70°C To +200°C

Mechanical Characteristics

Bulk Cable Weight: 37 lbs/1000ft
Max Recommended Pulling Tension: 105 lbs
Min Bend Radius/Minor Axis: 2 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65: Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
CSA Flammability: FT6
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorPutup TypeLengthUPC
83702 002100RedReel100 ft612825205463
83702 002500RedReel500 ft612825205494
83702 0021000RedReel1,000 ft612825205470
83702 0023000RedReel3,000 ft612825205487
Footnote: C - CRATE REEL PUT-UP.
Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Product Notes

Notes: Teflon« is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

History

Update and Revision: Revision Number: 0.293 Revision Date: 05-11-2020
Date: 2005-04-01
