83569 - Electronic, 19 C #22 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP

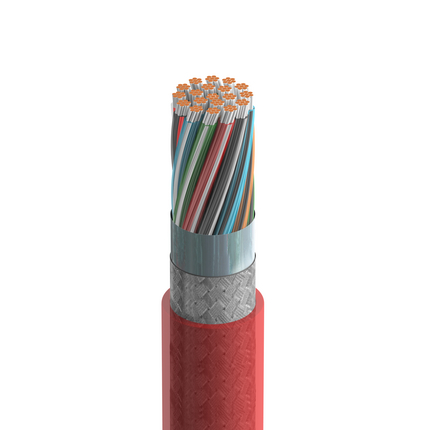

High Temperature Electronic, 19 Conductor 22AWG (7x30) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP

Product Overview

Suitable Applications: extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)227x30TC - Tinned Copper19
Conductor Count: 19
Insulation
ElementMaterialNominal Wall Thickness
Conductor(s)FEP - Fluorinated Ethylene Propylene0.0065 in
Color Chart
NumberColor
1Black
2White
3Red
4Green
5Orange
6Blue
7White/Black
8Red/Black
9Green/Black
10Orange/Black
11Blue/Black
12Black/White
13Red/White
14Green/White
15Blue/White
16Black/Red
17White/Red
18Orange/Red
19Blue/Red
Outer Shield Material
TypeLayerMaterialMaterial Trade NameCoverage [%]
Tape1Alum / PolyBeldfoil®100 %
Braid2TC - Tinned Copper85 %
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.269 in0.015 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
15.5 Ohm/1000ft3.09 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
23 pF/ft40 pF/ft
Current
ElementMax. Recommended Current [A]
10C Temperature rise1.4 Amps per conductor @ 25°C ambient
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -70°C To +200°C

Mechanical Characteristics

Bulk Cable Weight: 81 lbs/1000ft
Max Recommended Pulling Tension: 225 lbs
Min Bend Radius/Minor Axis: 3.0 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Burial: Yes
Suitability - Indoor: Yes
Suitability - Outdoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
CSA Flammability: FT6
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorPutup TypeLengthUPC
83569 0021000RedReel1,000 ft612825205067
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.293 Revision Date: 05-11-2020
Date: 2005-04-01
