83509 - Electronic, 9 C #24 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP

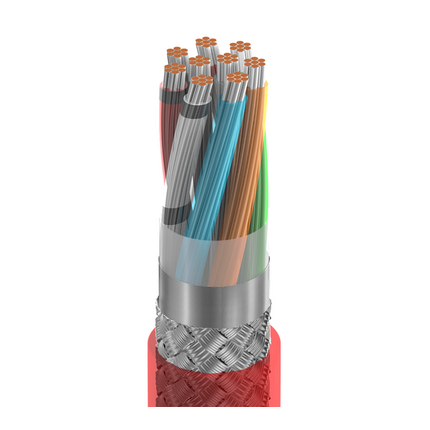

High Temperature Electronic, 9 Conductor 24AWG (7x32) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP

Product Overview

Suitable Applications: extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
ElementNumber of ElementAWGStrandingMaterial
Conductor(s)9247x32TC - Tinned Copper
Insulation
ElementMaterialThickness [in.]Color Code
Conductor(s)FEP - Fluorinated Ethylene Propylene0.006Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe
Outer Shield Material
Shield TypeMaterialCoverage
Tape + BraidBi-Laminate (Alum+Poly) + Tinned Copper (TC)100% + 85%
Outer Jacket Material
MaterialThicknessNom. Diameter
FEP - Fluorinated Ethylene Propylene0.014 in0.188 in
Cable Diameter (Nominal): 0.188 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Max. Current
Conductor(s)24 Ohm/1000ft20 pF/ft36 pF/ft1.4 Amps per Conductor at 25ºC
Nom Outer Shield DCR: 5.0 Ohm/1000ft
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL RatingOperating
150°C-70°C to +200°C
Bend Radius
Stationary Min.Installation Min.
2 in1.9 in
Max. Pull Tension: 55 lbs
Bulk Cable Weight: 34 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Oil Resistance
Sustainability: CA Prop 65
Flammability / Fire Resistance: NFPA 262, FT6, IEC 60332-1-2
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Gas Resistant

History

Update and Revision: Revision Number: 0.345 Revision Date: 09-30-2020
