8336 - RS232, Low Cap, #24-6pr, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG

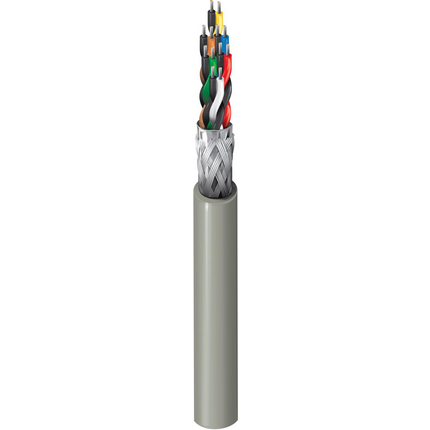

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, multi-paired cable with overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.

Product Overview

Suitable Applications: rs-232 extended distance applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
247x32TC - Tinned Copper6
Conductor Count: 12
Insulation
MaterialNominal Wall Thickness
S-R PVC - Semi-Rigid Polyvinyl Chloride0.011 in
Color Chart
NumberColor
1White/Blue & Blue/White
2White/Orange & Orange/White
3White/Green & Green/White
4White/Brown & Brown/White
5White/Gray & Gray/White
6Red/Blue & Blue/Red
Outer Shield Material
TypeLayerMaterialMaterial Trade NameCoverage [%]
Tape1Alum / PolyBeldfoil®100 %
Braid2TC - Tinned Copper65 %
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.31 in0.035 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
24 Ohm/1000ft4.7 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
30 pF/ft50 pF/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Delay
Max. Delay SkewNominal Velocity of Propagation (VP) [%]
60 ns/100m60 %
Current
Max. Recommended Current [A]
1.6 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 80°C (UL AWM Style 2464)
Operating Temp Range: -30°C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 57 lbs/1000ft
Max Recommended Pulling Tension: 95 lbs
Min Bend Radius/Minor Axis: 3.25 in

Standards

NEC/(UL) Specification: CMG
CEC/C(UL) Specification: CMG
UL AWM Style: 2464 (300 V 80°C)
CSA AWM Specification: AWM I A
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-10-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1685 FT4 Loading
CSA Flammability: FT4
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
8336 060100ChromeReel100 ft612825204510
8336 060500ChromeReel500 ft612825204534
8336 0601000ChromeReel1,000 ft612825204527
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.242 Revision Date: 04-28-2020
Date: 2005-10-01
