83320E - Electronic, 2 C #20 Str SPC, TFE Ins, OA SPC Brd, TFE Jkt, MIL-W-16878/4 (Type E)

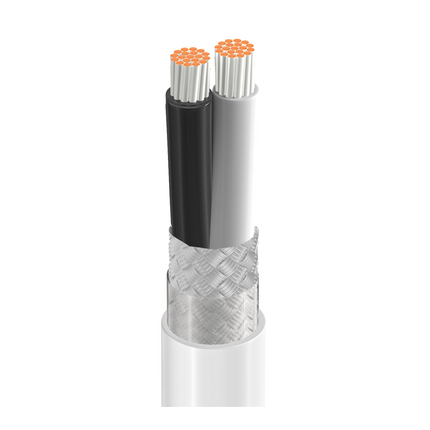

High Temperature Electronic, 2 Conductor 20AWG (19x32) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid(85%) Shield, TFE Outer Jacket, MIL-W-16878/4 (Type E)

Product Overview

Suitable Applications: MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals & voltage control

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Conductor(s)220 AWG19x32SC - Silvered Copper
Insulation
ElementMaterialNom. ThicknessColor Code
Conductor(s)PTFE - Polytetrafluoroethylene0.010 in (0.25 mm)White, Black
Outer Shield
Shield TypeMaterialCoverage
BraidSilvered Copper (SC)85%
Outer Jacket
MaterialNom. ThicknessNom. Diameter
PTFE - Polytetrafluoroethylene0.011 in (0.28 mm)0.159 in (4.04 mm)
Overall Cable Diameter (Nominal): 0.159 in (4.04 mm)

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Max. Current
Conductor(s)8.9 Ohm/1000ft (29 Ohm/km)31.7 pF/ft (104 pF/m)51 pF/ft (170 pF/m)6.5 Amps per conductor @ 25°C
Voltage
Voltage Rating
600 V

Mechanical Characteristics

Temperature
Operating
-65°C to +200°C
Bend Radius
Stationary Min.Installation Min.
1.6 in (41 mm)1.6 in (41 mm)
Max. Pull Tension: 54.8 lbs (24.9 kg)
Bulk Cable Weight: 21 lbs/1000ft (31 kg/km)

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEMA Compliance: NEMA HP3
Military Compliance: MIL-W-16878/4 (Type E except stranding), (insulated conductors)
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

History

Update and Revision: Revision Number: 0.375 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorPutup TypeLengthUPC
83320E 009100WhiteReel100 ft612825204022
83320E 009500WhiteReel500 ft612825204046
83320E 0091000WhiteReel1,000 ft612825204039
