8304 - RS-232, Low Cap, #22-4pr, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG

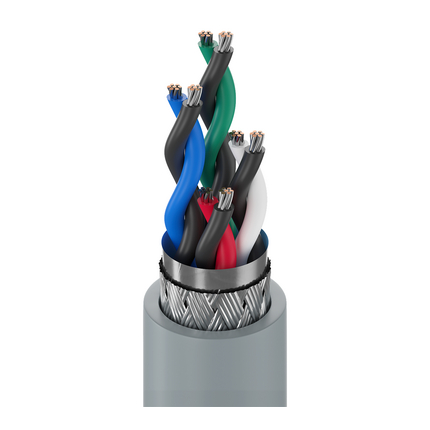

Computer EIA RS-232 Cable, 22 AWG stranded (7x30) tinned copper conductors, semi-rigid PVC insulation, 4 twisted pairs, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.

Product Overview

Suitable Applications: RS-232 Extended Distance Applications; Computer Communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring

Construction Details

Conductor
ElementNumber of ElementAWGStrandingMaterial
Pair(s)4227x30TC - Tinned Copper
Insulation
ElementMaterialThickness [in]Color
Pair(s)S-R PVC - Semi-Rigid Polyvinyl Chloride0.011Black & Red, Black & White, Black & Green, Black & Blue
Outer Shield Material
TypeMaterialCoverage
Tape + BraidAlum / Poly + TC - Tinned Copper100% + 65%
Outer Jacket Material
MaterialNominal Wall ThicknessNominal Diameter
PVC - Polyvinyl Chloride0.045 in0.320 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Nom. Velocity of Prop.Max. Current
Pair(s)15 Ohm/1000ft35 pF/ft63 pF/ft60%2.1 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

Temperature
UL RatingOperating
80°C (UL AWM 2464)-30°C to +80°C
Bend Radius
Stationary Min.
3.25 in
Max Recommended Pulling Tension: 102 lbs

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65 (CJ for Wire and Cable)
Flammability / Fire Resistance: FT4, IEC 60332-1-2
NEC / UL Compliance: CMG
AWM Compliance: 2464
CEC / C(UL) Compliance: CMG
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS 2

History

Update and Revision: Revision Number: 0.307 Revision Date: 05-29-2020
Date: 2005-10-01
