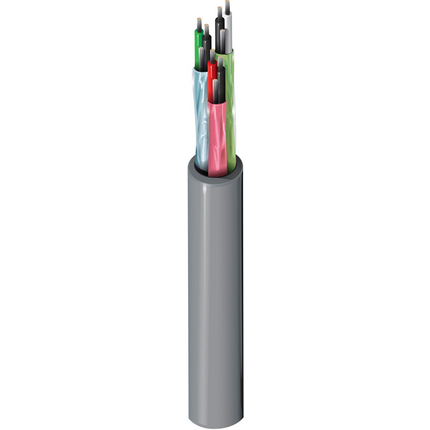

82777 - Audio, Control & Instrument, #22-3pr, FEP, Indiv. Foil, LS-PVC Jkt, CMP


Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductor, FEP insulation, twisted pairs individually shielded with Beldfoil® (100% coverage), overall jacket per table below, 22 AWG stranded tinned copper drain wire.

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Pairs
227x30TC - Tinned Copper0.03 in3
Conductor Count: 6
Conductor Size: 22 AWG
Insulation
MaterialNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.011 in
Color Chart
NumberColor
1Black & Red
2Black & White
3Black & Green
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum Foil-Polyester TapeBeldfoil® (Z-Fold®)100 %TC - Tinned Copper22Stranded
Outer Shield Material
MaterialDrainwire AWG
Unshielded22
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall Thickness
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.237 in0.017 in

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCRMax. Conductor DCR
11.3 Ohm/1000ft160 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
35 pF/ft76 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Impedance
Nominal Characteristic Impedance
46 Ohm
Delay
Max. Delay SkewNominal Velocity of Propagation (VP) [%]
62 ns/100m62 %
Current
Max. Recommended Current [A]
1.96 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: 0°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 36 lbs/1000ft
Max Recommended Pulling Tension: 82 lbs
Min Bend Radius/Minor Axis: 2.5 in

Standards

NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
CSA Flammability: FT6
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 8777
Variants
Item #ColorUPCFootnote
82777 8771000Natural612825197829C
82777 877U1000Natural612825197805
82777 877U500Natural612825197812
Footnote: C - CRATE REEL PUT-UP.
Date: 2005-04-01
