82740 - Electronic, 2 C #18 Str TC, FEP Ins, PVC Jkt, CMP

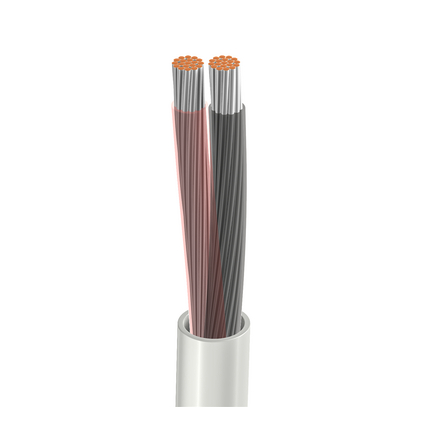

Electronic Cable, 2 Conductor 18AWG (19x30) Tinned Copper, FEP Insulation, PVC Outer Jacket, CMP

Product Overview

Suitable Applications: indoor plenum applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Pairs
Pair(s)1819x30TC - Tinned Copper1
Conductor Count: 2
Insulation
ElementMaterialNominal Wall Thickness
Pair(s)FEP - Fluorinated Ethylene Propylene0.0065 in
Color Chart
NumberColor
1Black & Red
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall Thickness
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.143 in0.0145 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
5.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
20 pF/ft
Inductance
Nominal Inductance
0.14 µH/ft
Impedance
Nominal Characteristic Impedance
72 Ohm
Current
Max. Recommended Current [A]
5.4 Amps per conductor @ 25°C
Voltage
UL DescriptionUL Voltage Rating
CMP300 V
CL3P150 V

Temperature Range

Operating Temp Range: -20°C to +60°C

Mechanical Characteristics

Bulk Cable Weight: 15 lbs/1000ft
Max Recommended Pulling Tension: 50 lbs
Min Bend Radius/Minor Axis: 1.5 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP, CL3P
CEC/C(UL) Specification: CMP
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-10-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
CSA Flammability: FT6
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V

Plenum/Non-Plenum

Plenum (Y/N): Yes
Plenum Number: 9740

Part Number

Non-Plenum Number: 9740
Variants
Item #ColorPutup TypeLengthUPC
82740 8771000NaturalReel1,000 ft612825197652
82740 877U1000NaturalUnReel1,000 ft612825197645
82740 8775000NaturalReel5,000 ft612825197669
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.307 Revision Date: 05-27-2020
Date: 2005-10-01
Belden Classics
Cabling Solutions for Industrial Applications
No accessories are available for this product
