82641 - Electronic, 2 C #24 Str TC, FEP Ins, OS, PVC Jkt, CMP

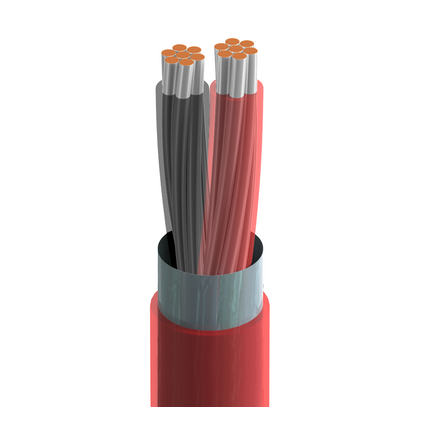

Electronic Cable, 2 Conductor 24AWG (7x32) Tinned Copper, FEP Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CMP

English Metric
Share

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
247x32TC - Tinned Copper1
Conductor Count: 2
Total Number of Pairs: 1
Insulation
MaterialNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.006 in
Color Chart
NumberColor
1Black & Red
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper247x32 mm
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall Thickness
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.106 in0.014 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
24.1 Ohm/1000ft17 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
31 pF/ft59 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Current
Max. Recommended Current [A]
2.2 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: 0°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 8 lbs/1000ft
Max Recommended Pulling Tension: 16 lbs
Min Bend Radius/Minor Axis: 1.25 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
CSA Flammability: FT6
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes
Plenum Number: 88641

Part Number

Non-Plenum Number: 8641
Variants
Item #ColorUPCLengthFootnote
82641 8771000Natural6128251975081,000 ftC
82641 877U1000Natural6128251974921,000 ft
Footnote: C - CRATE REEL PUT-UP.
