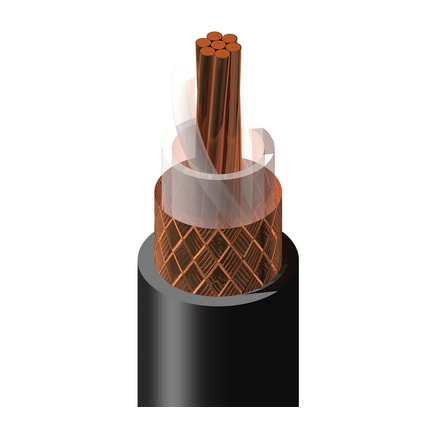

(4)Coax 93Ω RG-62B/U Type, 24 AWG (7x32) bare copper-covered steel conductor, semi-solid polyethylene insulation, bare copper braid shield (95% coverage), non-contaminating PVC jacket
| Suitable Applications: | Computer, Instrumentation |
| RG Type: | 62 |
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 24 AWG | Solid | 0.024 in | BCCS - Bare Copper Covered Steel |
| Material | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|
| PE - Polyethylene (Semi-Solid) | 0.146 in (3.71 mm) | White | Solid PE monofilament spiral around conductor. Solid PE tube over monofilament |
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Braid | Bare Copper (BC) | 95% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride (Non-Contaminating) | 0.242 in (6.15 mm) |
| Overall Cable Diameter (Nominal): | 0.242 in (6.15 mm) |
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.31 dB/100ft |
| 10 MHz | 0.90 dB/100ft |
| 50 MHz | 2.00 dB/100ft |
| 100 MHz | 2.90 dB/100ft |
| 200 MHz | 4.20 dB/100ft |
| 400 MHz | 6.10 dB/100ft |
| 700 MHz | 8.60 dB/100ft |
| 900 MHz | 10.10 dB/100ft |
| 1000 MHz | 11.0 dB/100ft |
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 59.0 Ohm/1000ft | 2.9 Ohm/1000ft (9.5 Ohm/km) | 13.5 pF/ft (44.3 pF/m) | 93 Ohm | 84% |
| UL Voltage Rating | Voltage Rating |
|---|---|
| 300 V (CMX), 30 V (UL AWM 1354) | 750 V |
| UL Temperature | Operating |
|---|---|
| 60°C (UL AWM 1354) | -40°C to +85°C |
| Installation Min. |
|---|
| 2.4 in (61 mm) |
| Max. Pull Tension: | 75 lbs (34 kg) |
| Bulk Cable Weight: | 33 lbs/1000ft |
| Environmental Suitability: | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, UV Resistance, Aerial - When supported by messenger wire |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | UL 1581 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | CMX |
| AWM Compliance: | AWM 1354 |
| CEC / C(UL) Compliance: | CMX |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Update and Revision: | Revision Number: 0.486 Revision Date: 02-03-2025 |
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8255 010500 | Black | Reel | 500 ft | 612825197331 | |
| 8255 0101000 | Black | Reel | 1,000 ft | 612825197324 | C |
