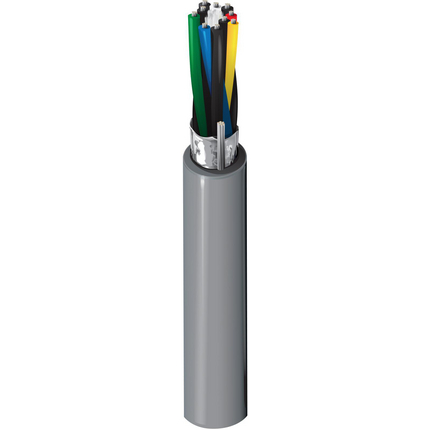

82505 - RS232, #24-5pr, FEP, O/A Foil, LS-PVC Jkt, CMP


Computer EIA RS-232 Cable, 5-Pair, 24 AWG stranded (7x32) tinned copper conductors, FEP insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, Flamarrest® jacket, plenum rated

Product Overview

Suitable Applications: indoor plenum applications; RS-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

Conductor
ElementNumber of ElementAWGStrandingMaterial
Pair(s)5247x32TC - Tinned Copper
Insulation
ElementMaterialThickness [in]Color
Pair(s)FEP - Fluorinated Ethylene Propylene0.006Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow
Outer Shield Material
TypeMaterialCoverageDrainwire Type
TapeAlum / Poly100%24 AWG (7x32) TC
Outer Jacket Material
MaterialNominal Wall ThicknessNominal Diameter
PVC-LS - Polyvinyl Chloride (Low Smoke)0.015 in0.196 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Max. Current
Pair(s)24.1 Ohm/1000ft25 pF/ft45 pF/ft1.5 Amps per conductor at 25°C
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
Operating
0°C to +75°C
Bend Radius
Stationary Min.
2 in
Max Recommended Pulling Tension: 61 lbs

Standards and Compliance

Sustainability: CA Prop 65 (CJ for Wire and Cable)
Flammability / Fire Resistance: NFPA 262 Plenum Flame Test (UL910), FT6
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS 2

History

Update and Revision: Revision Number: 0.252 Revision Date: 06-01-2020
Date: 2005-04-01
No accessories are available for this product
