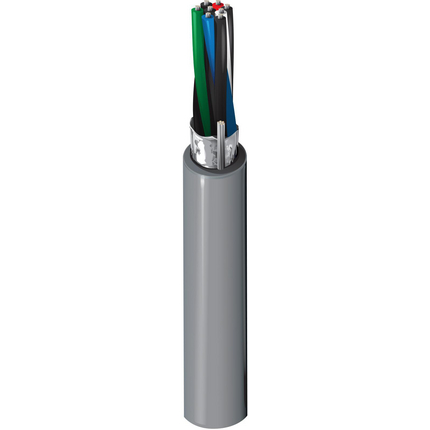

82504 - RS232, #24-4pr, FEP, O/A Foil, LS-PVC Jkt, CMP




Computer EIA RS-232 Cable, 4-Pair, 24 AWG stranded (7x32) tinned copper conductors, FEP insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, Flamarrest® jacket, plenum rated

Product Overview

Suitable Applications: indoor plenum applications; RS-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

Conductor
ElementNo. of ElementsSizeStrandingMaterial
Pair(s)424 AWG7x32TC - Tinned Copper
Insulation
ElementMaterialNom. ThicknessColor Code
Pair(s)FEP - Fluorinated Ethylene Propylene0.006 in (0.15 mm)Black & Red, Black & White, Black & Green, Black & Blue
Outer Shield
Shield TypeMaterialCoverageDrainwire Type
TapeBi-Laminate (Alum+Poly)100%24 AWG (7x32) TC
Outer Jacket
MaterialNom. ThicknessNom. Diameter
PVC - Polyvinyl Chloride0.014 in (0.36 mm)0.193 in (4.90 mm)
Overall Cable Diameter (Nominal): 0.193 in (4.90 mm)

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Max. Current
Pair(s)24.1 Ohm/1000ft (79.1 Ohm/km)25 pF/ft (82 pF/m)45 pF/ft (150 pF/m)1.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
Operating
0°C to +60°C
Max. Pull Tension: 50 lbs (23 kg)
Bulk Cable Weight: 22 lbs/1000ft (33 kg/km)

Standards and Compliance

Flammability / Reaction to Fire: NFPA 262 Plenum Flame Test (UL910)
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.302 Revision Date: 02-03-2025

Part Numbers

Variants
Item #ColorUPCFootnote
82504 8771000Natural612825197218C
82504 877U1000Natural612825197201
