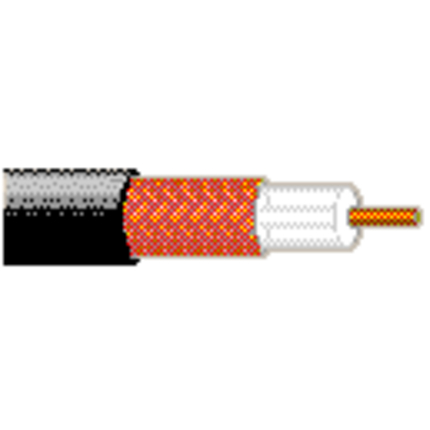

8241NH - Analog Video, RG59, 23 AWG, BCCS, LSZH


23 AWG Solid .023" bare copper-covered steel conductor, polyethylene insulation, bare copper braid shield (95% coverage), LSZH jacket.

Product Overview

Suitable Applications: Video

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Coax
23SolidBCCS - Bare Copper Covered Steel0.023 in1
Conductor Count: 1
Insulation
MaterialNominal Diameter
PE - Polyethylene0.146 in
Outer Shield Material
TypeMaterialCoverage [%]
BraidBare Copper (BC)95%
Outer Jacket Material
MaterialNominal Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant)0.241 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCROuter Conductor DCR
49 Ohm/1000ft2.6 Ohm/1000ft2.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
20.5 pF/ft
Inductance
Nominal Inductance
0.131 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
1 MHz0.6 dB/100ft
10 MHz1.1 dB/100ft
50 MHz2.4 dB/100ft
100 MHz3.4 dB/100ft
200 MHz4.9 dB/100ft
400 MHz7 dB/100ft
700 MHz9.7 dB/100ft
900 MHz11.1 dB/100ft
1000 MHz12 dB/100ft
Delay
Nominal DelayNominal Velocity of Propagation (VP) [%]
1.54 ns/ft66%
Power Rating
Frequency [MHz]Max. Power Rating [W]Nominal Power Rating [W]
50 MHz470 W470 W
100 MHz310 W310 W
300 MHz160 W160 W
500 MHz115 W115 W
1,000 MHz76 W76 W
Voltage
Non-UL Voltage RatingUL Voltage Rating
1700 V RMS
30 V RMS

Temperature Range

Non-UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 39 lbs/1000ft
Max. Pull Tension: 62 lbs
Min Bend Radius/Minor Axis: 2.4 in

Standards

RG Type: 59/U Type

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU RoHS Compliance Date (yyyy-mm-dd): 2006-11-10
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Aerial: Yes - Black only, when supported by messenger wire
Suitability - Burial: No
Suitability - Hazardous Locations: No
Suitability - Indoor: Yes
Suitability - Outdoor: Yes - Black only

Flammability, LS0H, Toxicity Testing

UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Product Notes

Notes: Print legend includes sequential footage marks.

History

Update and Revision: Revision Number: 0.163 Revision Date: 09-30-2020
Date: 2006-11-10
