8208 - Electronic, 2 C #18 Str TC, EPDM Ins, OA TC Brd, PVC Jkt

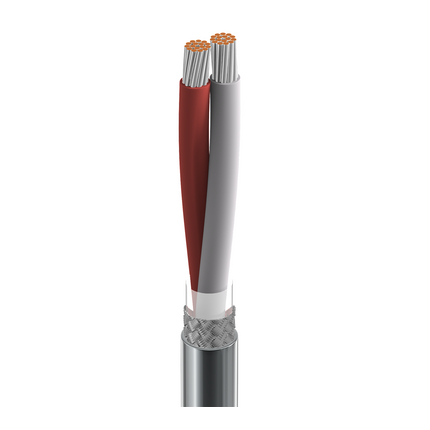

Electronic, 2 Conductor 18AWG (16x30) Tinned Copper, EPDM Insulation, Overall Tinned Copper Braid(73%) Shield, PVC Outer Jacket

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Pairs
Pair(s)1816x30TC - Tinned Copper1
Conductor Count: 2
Total Number of Pairs: 1
Insulation
ElementMaterialNominal Wall Thickness
Pair(s)EPDM - Ethylene Propylene Diene Monomer0.022 in
Color Chart
NumberColor
1Red & White
Outer Shield Material
TypeMaterialCoverage [%]
BraidTC - Tinned Copper73 %
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessSeparator Material
PVC - Polyvinyl Chloride0.257 in0.025 inPolyester

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
46 pF/ft77 pF/ft
Inductance
Nominal Inductance
0.2 µH/ft
Impedance
Nominal Characteristic Impedance
44 Ohm
Current
Max. Recommended Current [A]
5.2 Amps per conductor @ 25°C
Voltage
Non-UL Voltage Rating
300 V RMS

Temperature Range

Non-UL Temp Rating: 80°C
Operating Temp Range: -20°C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 40 lbs/1000ft
Max Recommended Pulling Tension: 69 lbs
Min Bend Radius/Minor Axis: 2.75 in

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
8208 060100ChromeReel100 ft612825196051
8208 060500ChromeReel500 ft612825196075
8208 060U500ChromeUnReel500 ft612825196044
8208 0601000ChromeReel1,000 ft612825196068
8208 060U1000ChromeUnReel1,000 ft612825196037
8208 0605000ChromeReel5,000 ft612825196082
Footnote: C - CRATE REEL PUT-UP.
Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Product Notes

Notes: No surface printing.

History

Update and Revision: Revision Number: 0.298 Revision Date: 05-11-2020
Date: 2004-01-01
Belden Classics
Cabling Solutions for Industrial Applications
No accessories are available for this product
