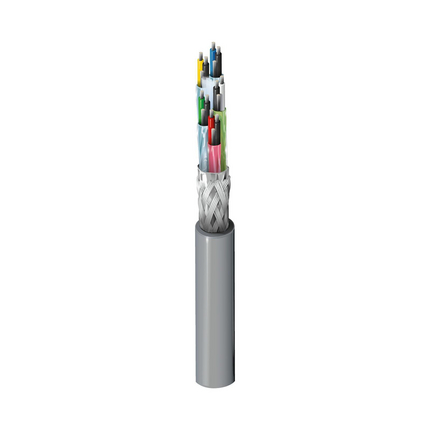

8165 - RS232/422 Low Cap, #24-5pr, FPO, Indiv.& O/A Foils+Braid, PVC Jkt, CM, 100Ω


Computer EIA RS-232/422, Digital Audio Cable, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, 5 twisted pairs individually Beldfoil® shielded + overall 100% Beldfoil® + tinned copper braid shield (65% coverage), drain wire, PVC jacket.

Product Overview

Suitable Applications: RS-232 Extended Distance & RS-422 Applications; Computer Communications; Low Voltage Analog signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Digital Audio; Panel Wiring

Construction Details

Conductor
ElementNumber of ElementAWGStrandingMaterial
Pair(s)5247x32TC - Tinned Copper
Insulation
ElementMaterialThickness [in]Color
Pair(s)PE - Polyethylene (Foam)0.0185Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow
Inner Shield Material
ElementTypeMaterialCoverageDrain TypeNotes
Pair(s)TapeAlum / Poly100%24 AWG (7x32) TCZ-Fold® Foil-in
Outer Shield Material
TypeMaterialCoverage
Tape + BraidAlum / Poly + TC - Tinned Copper100% + 65%
Outer Jacket Material
MaterialNominal Wall ThicknessNominal Diameter
PVC - Polyvinyl Chloride0.048 in0.413 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Characteristic ImpedenceNom. Velocity of Prop.Max. Current
Pair(s)24 Ohm/1000ft12.5 pF/ft22 pF/ft100 Ohm78%1.6 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V (CM), 300 V (UL AWM 2493)

Mechanical Characteristics

Temperature
UL RatingOperating
60°C (UL AWM 2493)-40°C to +60°C
Bend Radius
Stationary Min.
4 in
Max Recommended Pulling Tension: 127 lbs

Standards and Compliance

Sustainability: CA Prop 65 (CJ for Wire and Cable)
Flammability / Fire Resistance: UL1581 Vertical Tray, IEC 60332-1-2
NEC / UL Compliance: CM
AWM Compliance: 2493
CEC / C(UL) Compliance: CM
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS 2

Product Notes

Notes: Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

History

Update and Revision: Revision Number: 0.265 Revision Date: 06-01-2020
Date: 2004-01-01
