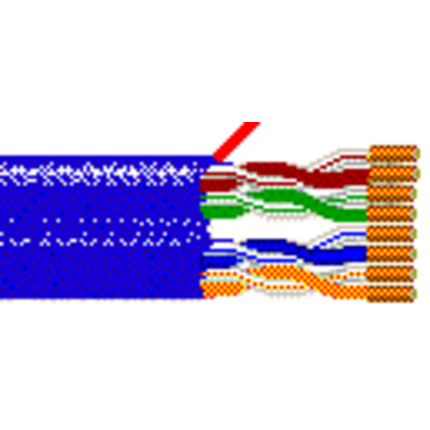

(109)Category 6, 23 AWG bonded pairs solid bare copper conductors, non-plenum, polyolefin insulation, skew 10.0ns/100m nominal, rip cord, PVC jacket.
| Suitable Applications: | Category 6, UTP Based Video Applications, and KVM |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 23 | Solid | BC - Bare Copper | 4 |
| Conductor Count: | 8 |
| Total Number of Pairs: | 4 |
| Material |
|---|
| PO - Polyolefin |
| Bonded-Pair: | N/A |
| Number | Color |
|---|---|
| 1 | White/Blue Stripe & Blue |
| 2 | White/Orange Stripe & Orange |
| 3 | White/Green Stripe & Green |
| 4 | White/Brown Stripe & Brown |
| Material |
|---|
| No Shield |
| Material | Nominal Diameter | Ripcord |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.365 in | Yes |
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 90 Ohm/km | 3 % |
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 49.2 | 15 pF/ft |
| Nominal Velocity of Propagation (VP) [%] | Typical Delay Skew |
|---|---|
| 70% | 0.03 ns/100m |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) |
|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2 dB/100m | 74.3 dB | 72.3 dB | 70.3 dB | 67.8 dB | 64.8 dB | 20 dB | 100 ± 15 |
| 4 MHz | 3.8 dB/100m | 65.3 dB | 63.3 dB | 59.5 dB | 55.7 dB | 52.7 dB | 23 dB | 100 ± 15 |
| 8 MHz | 5.3 dB/100m | 60.8 dB | 58.8 dB | 53.4 dB | 49.7 dB | 46.7 dB | 24.5 dB | 100 ± 15 |
| 10 MHz | 6 dB/100m | 59.3 dB | 57.3 dB | 51.3 dB | 47.8 dB | 44.8 dB | 25 dB | 100 ± 15 |
| 16 MHz | 7.6 dB/100m | 56.3 dB | 54.3 dB | 46.7 dB | 43.7 dB | 40.7 dB | 25 dB | 100 ± 15 |
| 20 MHz | 8.5 dB/100m | 54.8 dB | 52.8 dB | 44.3 dB | 41.7 dB | 38.7 dB | 25 dB | 100 ± 15 |
| 25 MHz | 9.5 dB/100m | 53.4 dB | 51.4 dB | 41.8 dB | 39.8 dB | 36.8 dB | 24.3 dB | 100 ± 15 |
| 31.25 MHz | 10.7 dB/100m | 51.9 dB | 49.9 dB | 39.2 dB | 37.9 dB | 34.9 dB | 23.6 dB | 100 ± 15 |
| 62.5 MHz | 15.4 dB/100m | 47.4 dB | 45.4 dB | 30 dB | 31.8 dB | 28.8 dB | 21.5 dB | 100 ± 15 |
| 100 MHz | 19.8 dB/100m | 44.3 dB | 42.3 dB | 22.5 dB | 27.8 dB | 24.8 dB | 20.1 dB | 100 ± 15 |
| 155 MHz | 25.2 dB/100m | 41.5 dB | 39.5 dB | 14.3 dB | 23.9 dB | 20.9 dB | 18.8 dB | 100 ± 22 |
| 200 MHz | 29 dB/100m | 39.8 dB | 37.8 dB | 8.8 dB | 21.8 dB | 18.7 dB | 18 dB | 100 ± 22 |
| 250 MHz | 32.8 dB/100m | 38.3 dB | 36.3 dB | 3.5 dB | 19.8 dB | 16.8 dB | 17.3 dB | 100 ± 32 |
| UL Voltage Rating |
|---|
| 300 V RMS |
| Operating Temperature Range: | -20°C To +75°C |
| Bulk Cable Weight: | 29 lbs/1000ft |
| Max. Pull Tension: | 50 lbs |
| Min. Bend Radius/Minor Axis: | 1.75 in |
| NEC/(UL) Compliance: | CMR |
| CEC/C(UL) Compliance: | CMG |
| CPR Euroclass: | Eca |
| Environmental Space: | Indoor - Riser |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | No |
| MII Order #39 (China RoHS): | Yes |
| UL Flammability: | UL1666 Vertical Shaft |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | No |
| Plenum Number: | 7989P |
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 7989R 0131000 | Blue, Dark | Reel | 1,000 ft | 612825192602 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Notes: | US Patent #'s 5, 606, 151; 5, 734, 126. |
| Update and Revision: | Revision Number: 0.411 Revision Date: 12-12-2023 |
