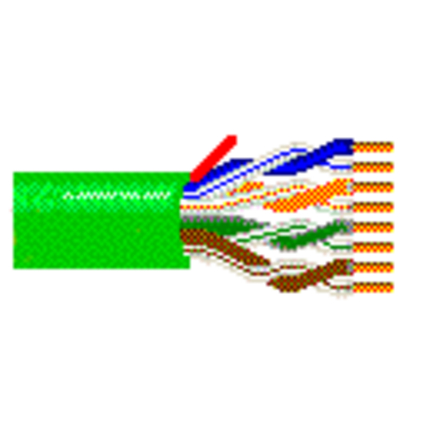

7988R - Low Skew, Category 5e, 4-24 AWG pairs, CMR


Category 5e, 24 AWG bonded pairs solid bare copper conductors, non-plenum, polyolefin insulation, skew 9.0ns/100m nominal, rip cord, PVC jacket.

Product Overview

Environmental Space: Indoor - Riser
Suitable Applications: Category 5e, UTP Based Video Applications, and KVM

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
24SolidBC - Bare Copper4
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Material
PO - Polyolefin
Bonded-Pair: N/A
Color Chart
NumberColor
1White/Blue Stripe & Blue
2White/Orange Stripe & Orange
3White/Green Stripe & Green
4White/Brown Stripe & Brown
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialNominal DiameterRipcord
PVC - Polyvinyl Chloride0.204 inYes

Electrical Characteristics

Conductor DCR
Max. Conductor DCRMax. DCR Unbalance
90 Ohm/km3 %
Capacitance
Max. Capacitance UnbalanceNom.Mutual Capacitance
6615 pF/ft
Delay
Max. DelayNominal Velocity of Propagation (VP) [%]Typical Delay Skew
0.027 ns/ft70 %0.027 ns/100m
High Freq
Frequency [MHz]Max. Insertion Loss (Attenuation)Min. NEXT [dB]Min. PSNEXT [dB]Min. ACR [dB]Min. PSACR [dB]Min. ACRF (ELFEXT) [dB]Min. PSACRF (PSELFEXT) [dB]Min. RL (Return Loss) [dB]Max./Min. Input Impedance (unFitted)Max./Min. Fitted Impedance
1 MHz2 dB/100m65.3 dB65.3 dB60.3 dB60.3 dB63.8 dB60.8 dB20 dB100 ± 15100 ± 15
4 MHz4.1 dB/100m56.3 dB53.3 dB49.2 dB49.2 dB51.7 dB48.7 dB23 dB100 ± 15100 ± 15
8 MHz5.8 dB/100m51.8 dB48.8 dB43 dB43 dB45.7 dB42.7 dB24.5 dB100 ± 15100 ± 15
10 MHz6.5 dB/100m50.3 dB47.3 dB40.8 dB40.8 dB43.8 dB40.8 dB25 dB100 ± 15100 ± 15
16 MHz8.2 dB/100m47.3 dB44.3 dB36 dB36 dB39.7 dB36.7 dB25 dB100 ± 15100 ± 15
20 MHz9.3 dB/100m45.8 dB42.8 dB33.5 dB33.5 dB37.7 dB34.7 dB25 dB100 ± 15100 ± 15
25 MHz10.4 dB/100m44.3 dB41.3 dB30.9 dB30.9 dB35.8 dB32.8 dB24.3 dB100 ± 15100 ± 15
31.25 MHz11.7 dB/100m42.9 dB39.9 dB28.2 dB28.2 dB33.9 dB30.9 dB23.6 dB100 ± 15100 ± 15
62.5 MHz17 dB/100m38.4 dB35.4 dB18.4 dB18.4 dB27.8 dB24.8 dB21.5 dB100 ± 15100 ± 15
100 MHz22 dB/100m35.3 dB32.3 dB10.3 dB10.3 dB23.8 dB20.8 dB20.1 dB100 ± 15100 ± 15
155 MHz28.1 dB/100m32.5 dB29.5 dB2 dB2 dB19.9 dB16.9 dB15.8 dB100 ± 25100 ± 15
200 MHz32.4 dB/100m30.8 dB27.8 dB1 dB1 dB17.7 dB14.7 dB15 dB100 ± 25100 ± 15
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 20 lbs/1000ft
Max Recommended Pulling Tension: 40 lbs
Min Bend Radius/Minor Axis: 0.25 in

Standards

NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG
ISO/IEC Compliance: 11801 Category 5
Telecommunications Standards: ANSI/TIA/EIA-568-B.2 Category 5e
Other Specification: NEMA WC-63.1 Category 5e, UL Verified to Category 5e

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Riser
CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 7988P

Part Number

Variants
Item #ColorUPCLength
7988R N3UU1000Green, Mil6128251925581,000 ft
7988R N3UU1000Green, Mil6128251925581,000 ft
Patent: https://www.belden.com/resources/patents

Product Notes

Notes: Jacket sequentially marked at 2 ft. intervals. Third party verified to TIA/EIA-568-B.2, Category 5e.

History

Update and Revision: Revision Number: 0.275 Revision Date: 08-22-2019
Date: 2005-01-01
