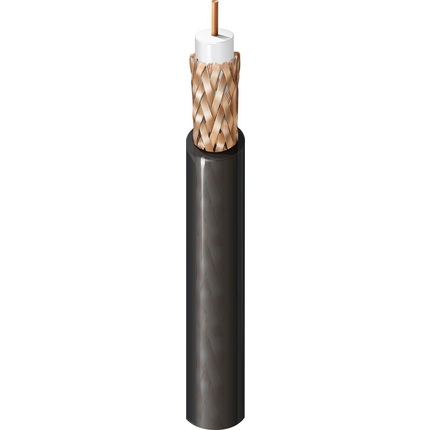

7986LC - Surveillance CCTV, RG-59 #20 BC, 95% BC Braid, CMP-FHC 25/50


Surveillance & CCTV Cable, RG59, Plenum-CMP-FHC 25/50, 20 AWG bare copper foam FEP core, 95% bare copper braid, FEP jacket

Product Overview

Suitable Applications: Surveillance, CCTV Camera

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Coax
20SolidBC - Bare Copper0.032 in1
Conductor Count: 1
Insulation
MaterialMaterial Trade NameNominal Diameter
FEP - Fluorinated Ethylene Propylene (Foam)Teflon®0.133 in
Outer Shield Material
TypeLayerMaterialCoverage [%]
Braid1Bare Copper (BC)95%
Outer Jacket Material
MaterialMaterial Trade NameNominal Diameter
FEP - Fluorinated Ethylene PropyleneTeflon®0.193 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor ResistanceNominal Outer Shield DCROuter Conductor DCR
10 Ohm/1000ft10 Ohm/1000ft2.5 Ohm/1000ft2.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.1 pF/ft
Inductance
Nominal Inductance
0.097 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
1 MHz0.29 dB/100ft
3 MHz0.58 dB/100ft
5 MHz0.7 dB/100ft
8 MHz0.87 dB/100ft
10 MHz1.05 dB/100ft
50 MHz1.8 dB/100ft
100 MHz2.7 dB/100ft
200 MHz3.9 dB/100ft
400 MHz5.9 dB/100ft
700 MHz8.5 dB/100ft
900 MHz10 dB/100ft
1000 MHz10.7 dB/100ft
Delay
Max. Delay SkewNominal DelayNominal Velocity of Propagation (VP) [%]
84 ns/100m1.21 ns/ft84%
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 200°C
Operating Temp Range: -40°C To +200°C

Mechanical Characteristics

Bulk Cable Weight: 31 lbs/1000ft
Max. Pull Tension: 55 lbs
Min Bend Radius (Overall Cable): 1.04
Min Bend Radius/Minor Axis: 1.9 in

Standards

NEC/(UL) Compliance: Limited Combustible FHC 25/50 CMP
RG Type: 59/U Type
Series Type: 59

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Burial: No
Suitability - Hazardous Locations: No
Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL723 (NFPA 255)
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorPutup TypeLengthUPC
7986LC 010500BlackReel500 ft612825192480
7986LC 0101000BlackReel1,000 ft612825192473
Footnote: C - CRATE REEL PUT-UP.

Product Notes

Notes: Print legend includes sequential footage marks.

History

Update and Revision: Revision Number: 0.339 Revision Date: 09-30-2020
Date: 2005-04-01
