7949A - Composite Data, Audio, Video, Security and Control Cable

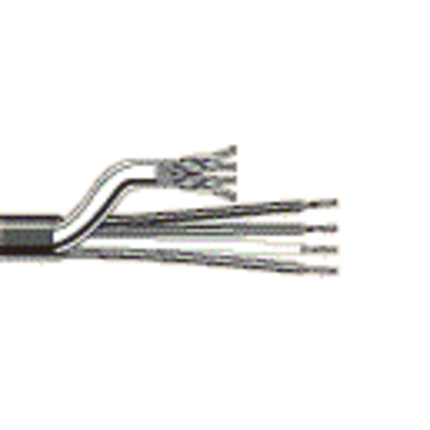

Composite - (1) Cat 5e 4-bonded-pair UTP 24 AWG, (4)16 AWG stranded (65x34) bare copper conductors, polyolefin insulation (pairs), PVC insulation (conductors), overall F-R PVC jacket, sequentially marked, CMR rated.

Product Overview

Suitable Applications: Data, control

Physical Characteristics (Overall)

Conductor Count: 12
Total Number of Pairs: 4

Temperature Range

Installation Temp Range: -25°C to +75°C
UL Temp Rating: 60°C
Operating Temp Range: -25°C to +75°C

Mechanical Characteristics

Bulk Cable Weight: 83 lbs
Max Recommended Pulling Tension: 141 lbs

Standards

NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes

Suitability

Suitability - Aerial: Yes - Black only, when supported by messenger wire
Suitability - Burial: No
Suitability - Hazardous Locations: No
Suitability - Indoor: Yes
Suitability - Outdoor: Yes - Black only

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Vertical Shaft
CSA Flammability: FT4

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPCLengthFootnote
7949A N3U1000Green, Mil6128250014471,000 ftC
7949A N3U500Green, Mil612825003687500 ftC
Footnote: C - CRATE REEL PUT-UP.
