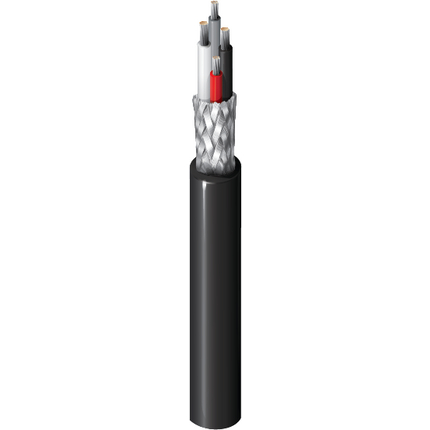

(109)SMPTE HD Composite, Electrical Camera Breakout Cable, 2 Stranded Conductor (19x29) 16 AWG and 2 Stranded Conductor (7x30) 22 AWG, TC Braid Shield (95% coverage), PVC Jacket, CMR
| Suitable Applications: | SMPTE CAMERA CABLE |
| Element | No. of Conductors | AWG | Stranding | Material | Nominal Conductor DCR | Insulation Material | Insulation Nominal Diameter |
|---|---|---|---|---|---|---|---|
| 22 AWG | 2 | 22 | 7x30 | TC - Tinned Copper | 15.1 Ohm/1000ft | PP - Polypropylene | 0.053 in |
| 16 AWG | 2 | 16 | 19x29 | TC - Tinned Copper | 2.43 Ohm/1000ft | PP - Polypropylene | 0.089 in |
| Description | Color |
|---|---|
| 22 AWG | Red |
| 22 AWG | Gray |
| 16 AWG | White |
| 16 AWG | Black |
| Shielding: | Braid |
| UL Description | UL Voltage Rating |
|---|---|
| 22 AWG | 300V RMS |
| 16 AWG | 300V RMS |
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.250 in |
| Layer 1 | Type | Material | Coverage |
|---|---|---|---|
| Overall | Braid | TC - Tinned Copper | 90 % |
| Jacket: | PVC |
| Operating Temperature Range: | -30C To +60C |
| Max. Pull Tension: | 147 lbs |
| Bulk Cable Weight: | 48 lbs/1000ft |
| NEC/(UL) Compliance: | CMR |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| UL Flammability: | UL 1666 |
| Plenum (Y/N): | N |
| Plenum Number: | 7825P |
| Update and Revision: | Revision Number: 0.145 Revision Date: 11-09-2022 |
| Item # | Color | UPC | Length |
|---|---|---|---|
| 7825R 0101000 | Black | 612825352204 | 1,000 ft |
| 7825R 0102000 | Black | 612825418283 | 2,000 ft |
| 7825R 0102500 | Black | 612825352198 | 2,500 ft |
| 7825R 0104000 | Black | 612825190097 | 4,000 ft |
