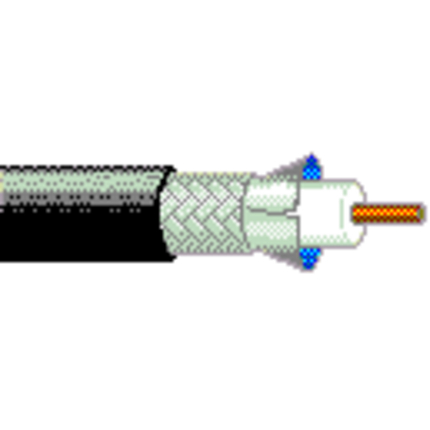

(4)50 Ohm Wireless Transmission Coax, RF 300, 13 AWG Solid Bare Copper Conductor, PE Insulation, Duobond® Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR
| Suitable Applications: | Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
| No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|
| 1 | 13 AWG | Solid | 0.072 in | BC - Bare Copper |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene (Foam) | 0.19 in (4.8 mm) | White |
| Table Notes: | Gas Injected |
| Layer | Outer Shield Type | Material | Material Trade Name | Coverage |
|---|---|---|---|---|
| 1 | Tape | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| 2 | Braid | Tinned Copper (TC) | 95% |
| Table Notes: | Splicing Tape |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.3 in (7.6 mm) |
| Overall Cable Diameter (Nominal): | 0.3 in (7.6 mm) |
| Frequency | Max. VSWR |
|---|---|
| 5-6000 MHz | 1.25:1 |
| Frequency | Nom. Attenuation |
|---|---|
| 5 MHz | 0.45 dB/100ft |
| 10 MHz | 0.6 dB/100ft |
| 30 MHz | 1 dB/100ft |
| 50 MHz | 1.3 dB/100ft |
| 150 MHz | 2.2 dB/100ft |
| 220 MHz | 2.7 dB/100ft |
| 450 MHz | 3.9 dB/100ft |
| 900 MHz | 5.6 dB/100ft |
| 1500 MHz | 7.3 dB/100ft |
| 1800 MHz | 8.1 dB/100ft |
| 2000 MHz | 8.6 dB/100ft |
| 2500 MHz | 9.7 dB/100ft |
| 3000 MHz | 10.8 dB/100ft |
| 3500 MHz | 11.8 dB/100ft |
| 4500 MHz | 13.5 dB/100ft |
| 5800 MHz | 15.8 dB/100ft |
| 6000 MHz | 16 dB/100ft |
| Frequency | Max. Power Rating |
|---|---|
| 30 MHz | 2,161 W |
| 50 MHz | 1,658 W |
| 150 MHz | 928 W |
| 220 MHz | 758 W |
| 450 MHz | 522 W |
| 900 MHz | 367 W |
| 1,500 MHz | 278 W |
| 2,000 MHz | 239 W |
| 2,500 MHz | 212 W |
| 3,500 MHz | 179 W |
| 4,500 MHz | 157 W |
| 6,000 MHz | 135 W |
| 4,500 MHz | 157 W |
| 5,800 MHz | 137 W |
| 6,000 MHz | 135 W |
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 2.16 Ohm/1000ft | 3.1 Ohm/1000ft (10 Ohm/km) | 23 pF/ft (75 pF/m) | 50 Ohm | 86% |
| UL Voltage Rating |
|---|
| 300 V RMS |
| UL Temperature | Operating |
|---|---|
| 60°C | -40°C To +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 3 in (76 mm) | 3 in (76 mm) |
| Max. Pull Tension: | 135 lbs (61.2 kg) |
| Bulk Cable Weight: | 61 lbs/1000ft |
| Environmental Suitability: | Indoor - Riser, Indoor |
| Flammability / Reaction to Fire: | UL1666 Vertical Shaft, FT4, IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 800, CMR |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Notes: | PF_7809R (1)# Elements@Conductor1:-In Stibo it was Blank and now changed it to 1. (2)Size@Conductor1 :-In Stibo it was 13 now changed to 13 AWG (3)Color@Color Chart1 01 :- In stibo it was Blank now Changed to White (4)Cable diameter- it was blank now changed to 0.3 in |
| Update and Revision: | Revision Number: 0.476 Revision Date: 02-03-2025 |
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 7809R 010500 | Black | Reel | 500 ft | 612825189763 | C |
| 7809R 0101000 | Black | Reel | 1,000 ft | 612825189756 | C |
