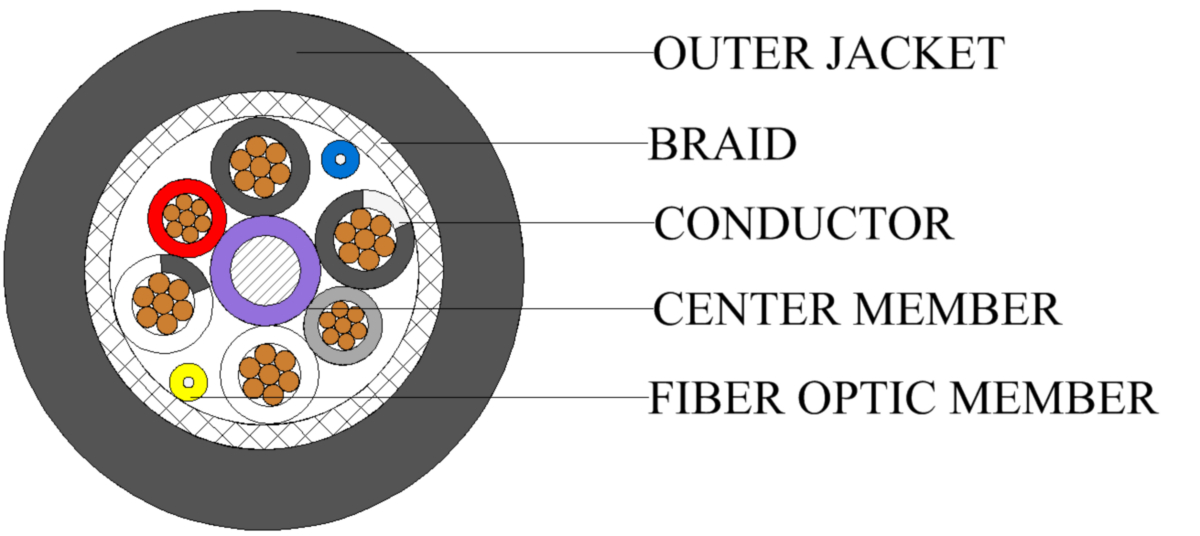

(109)Industry Standard SMPTE 311M Cable, 2 Single Mode Fibers, 2 TC Conductors 24 AWG (7x32) and 4 TC Conductors 20 AWG (19x32), PVC Insulation, TC Braid Shield (95% coverage), Belflex® Jacket, Riser
| Element | No. of Conductors | AWG | Stranding | Material | Nominal Conductor DCR | Insulation Material | Insulation Nominal Diameter |
|---|---|---|---|---|---|---|---|
| 24 AWG | 2 | 24 | 7x32 | TC - Tinned Copper | 23.3 Ohm/1000ft | PVC - Polyvinyl Chloride | 0.050 in |
| 20 AWG | 4 | 20 | 19x32 | TC - Tinned Copper | 8.8 Ohm/1000ft | PVC - Polyvinyl Chloride | 0.063 in |
| Description | Color |
|---|---|
| 24 AWG | Red |
| 24 AWG | Gray |
| 20 AWG | White |
| 20 AWG | Black |
| 20 AWG | White/Black |
| 20 AWG | Black/White |
| Filler |
|---|
| FR Filler |
| Shielding: | Braid |
| UL Description | UL Voltage Rating |
|---|---|
| 24 AWG | 300 V RMS |
| 20 AWG | 300 V RMS |
| Fiber Type | Fiber Count |
|---|---|
| OS2, G.657.A2 | 2 |
| Fiber Color Coding: | Yellow, Blue |
| Buffer Material | Buffer Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 900 µm |
| Mode Field Diameter: | 9.2 µm |
| Wavelength@Optical SM1: | 1310 nm, 1550 nm |
| Max. Attenuation at 1310 nm: | 0.50 dB/km |
| Max. Attenuation at 1550 nm: | 0.50 dB/km |
| Material | Nominal Diameter | Separator Material |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.357 in | PVC - Polyvinyl Chloride |
| Layer 1 | Type | Material | Coverage |
|---|---|---|---|
| Overall | Braid | TC - Tinned Copper | 0.95 % |
| Jacket: | PVC |
| Separator Material@OuterJacket1 1: | PVC - Polyvinyl Chloride |
| Operating Temperature Range: | -40°C to +70°C |
| Installation Temperature Range: | -10°C to +70°C |
| Storage Temperature Range: | -40°C to +70°C |
| Max. Pull Tension: | 1350 N |
| Bulk Cable Weight: | 80 lbs/1000ft |
| NEC/(UL) Compliance: | CMR |
| CEC/C(UL) Compliance: | CMG |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| CPR Euroclass: | Eca |
| Suitability - Indoor: | Yes |
| UL Flammability: | UL1666 Vertical Shaft |
| CSA/C(UL) Flammability: | FT4 |
| Plenum (Y/N): | N |
| Plenum Number: | 7804P |
| Update and Revision: | Revision Number: 0.332 Revision Date: 11-27-2023 |
| Item # | Color | UPC | Length | Footnote |
|---|---|---|---|---|
| 7804R B59CUT | Black, Matte | 612825189503 | ||
| 7804R B591000 | Matte Black | 612825378648 | 1,000 ft | C |
| 7804R B591640 | Matte Black | 612825189480 | 1,640 ft | C |
| 7804R B593280 | Matte Black | 612825189497 | 3,280 ft | C |
| 7804R B59500 | Matte Black | 612825378655 | 500 ft | C |
