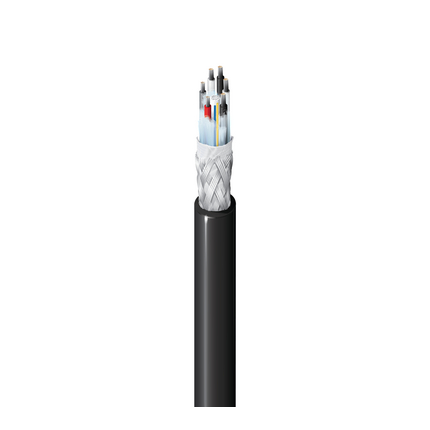

(109)Industry Standard SMPTE 311M Cable, 2 Single Mode Fibers, 2 TC Conductors 24 AWG (7x32) and 4 TC Conductors 20 AWG (19x32), PVC Insulation, TC Braid Shield (95% coverage), PVDF Jacket, Indoor/Outdoor CMP
| Suitable Applications: | Indoor/Outdoor, Broadcast, Studios, SMPTE 311 |
| Element | No. of Conductors | AWG | Stranding | Material | Nominal Conductor DCR | Insulation Material | Insulation Nominal Diameter |
|---|---|---|---|---|---|---|---|
| 24 AWG | 2 | 24 | 7x32 | TC - Tinned Copper | 23.3 Ohm/1000ft | FEP - Fluorinated Ethylene Propylene | 0.038 in |
| 20 AWG | 4 | 20 | 19x32 | TC - Tinned Copper | 8.8 Ohm/1000ft | FEP - Fluorinated Ethylene Propylene | 0.054 in |
| Description | Color |
|---|---|
| 24 AWG | Red |
| 24 AWG | Gray |
| 20 AWG | White |
| 20 AWG | White |
| 20 AWG | Black |
| 20 AWG | Black |
| Shielding: | Braid(s) |
| UL Description | UL Voltage Rating |
|---|---|
| 24 AWG | 300 V RMS |
| 20 AWG | 300 V RMS |
| Fiber Type | Fiber Count |
|---|---|
| OS2, G.657.A2 | 2 |
| Fiber Color Coding: | Yellow, Blue |
| Buffer Diameter |
|---|
| 900 µm |
| Mode Field Diameter: | 9.2 µm |
| Wavelength@Optical SM1: | 1310nm, 1550 nm |
| Max. Attenuation at 1310 nm: | 0.50 dB/km |
| Max. Attenuation at 1550 nm: | 0.50 dB/km |
| Nominal Diameter |
|---|
| 0.249 in |
| Layer 1 | Type | Material | Coverage |
|---|---|---|---|
| Overall | Braid | TC - Tinned Copper | 80 % |
| Jacket: | PVDF |
| Operating Temperature Range: | -20°C to 75°C |
| Installation Temperature Range: | 0°C to 75°C |
| Storage Temperature Range: | -20°C to 75°C |
| Max. Pull Tension: | 1350 N |
| Bulk Cable Weight: | 59 lbs/1000ft |
| NEC/(UL) Compliance: | CMP |
| CEC/C(UL) Compliance: | CMP |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| Suitability - Aerial: | Yes - When supported by messenger wire |
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | Yes |
| Suitability - Sunlight Resistance: | Yes |
| UL Flammability: | UL910 Steiner Tunnel |
| CSA/C(UL) Flammability: | FT6 |
| Update and Revision: | Revision Number: 0.15 Revision Date: 02-27-2024 |
| Item # | Color | Length |
|---|---|---|
| 7804PX 0101000 | Black | 1,000 ft |
| 7804PX 0104000 | Black | 4,000 ft |
