(10)| Suitable Applications: | Triaxial camera cable used to interconnect video cameras to related equipment |

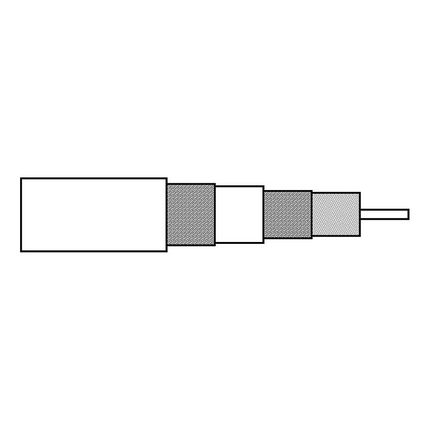

| AWG | Stranding | Material | Construction n x D | Nominal Diameter | No. of Coax |
|---|---|---|---|---|---|
| 12 | Stranded | BC - Bare Copper | 7x0.75 mm | 2.2 mm | 1 |
| Conductor Count: | 1 |
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Dielectric | PE - Polyethylene (Foam) | 9.7 mm | 0.2 mm |
| Type | Material | Coverage [%] | Nominal Diameter |
|---|---|---|---|
| Braid | BC - Bare Copper | 80 % | 10.4 mm |
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| LSZH - Low Smoke Zero Halogen flame retardant | 11.9 mm | 0.2 mm |
| Type | Material | Nominal Diameter | Min. Coverage [%] |
|---|---|---|---|
| Braid | BC - Bare Copper | 12.6 mm | 80 % |
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| LSZH - Low Smoke Zero Halogen flame retardant | 14.5 mm | 0.2 mm |
| Min Elongation at Breakof Jacket: | 125 % |
| Min Tensile Strength of Jacket: | 9 MPa |
| Nominal Conductor DCR | Nominal Inner Shield DCR | Nominal Outer Shield DCR |
|---|---|---|
| 5.7 Ohm/km | 6.4 Ohm/km | 4.1 Ohm/km |
| Nom. Capacitance Conductor to Shield |
|---|
| 55 pF/m |
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.4 dB/100m |
| 10 MHz | 1.3 dB/100m |
| 20 MHz | 1.7 dB/100m |
| 40 MHz | 2.5 dB/100m |
| 50 MHz | 2.8 dB/100m |
| 60 MHz | 3.1 dB/100m |
| 100 MHz | 4.2 dB/100m |
| 270 MHz | 7 dB/100m |
| 300 MHz | 7.6 dB/100m |
| 540 MHz | 10.1 dB/100m |
| 1000 MHz | 14.3 dB/100m |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 81 % |
| Frequency [MHz] | Min. SRL (Structural Return Loss) |
|---|---|
| 5 - 850 MHz | 21 dB |
| Frequency [MHz] | Min. Screening Attenuation |
|---|---|
| 30 - 850 MHz | 75 dB |
| Installation Temp Range: | -5°C To +70°C |
| Storage Temp Range: | -30°C To +70°C |
| Operating Temp Range: | -30°C To +70°C |
| Max Recommended Pulling Tension: | 550 N |
| Min Bend Radius (W/o Pulling Strength): | 150 mm |
| CPR Euroclass: | Eca |
| Series Type: | Triax 8/11/14 |
| Environmental Space: | Indoor - Euroclass Eca |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2014-04-18 |
| ISO/IEC Flammability: | IEC 60332-1-2 and IEC 60332-3-24 |
| Other Flammability: | CEI 20-22-3 |
| Amount of Halogen acc. to IEC 60754-1 & EN50267-1: | Zero |
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| 7785ECH.01500 | Red | Reel | 500 m | 8719605014719 |
| 7785ECH.019999 | Red | Reel | 500 m | 8719605014726 |
| 7785ECH.011000 | Red | Reel | 1,000 m | 8719605014702 |
| 7785ECH.012000 | Red | Reel | 2,000 m | 8719605124777 |
| Update and Revision: | Revision Number: 0.171 Revision Date: 04-08-2020 |
