7785E - VIDEO TRIAX 14 STRANDED PVC


VIDEO CAMERA TRIAX 14 STRANDED PVC

Product Overview

Suitable Applications: Triaxial camera cable used to interconnect video cameras to related equipment

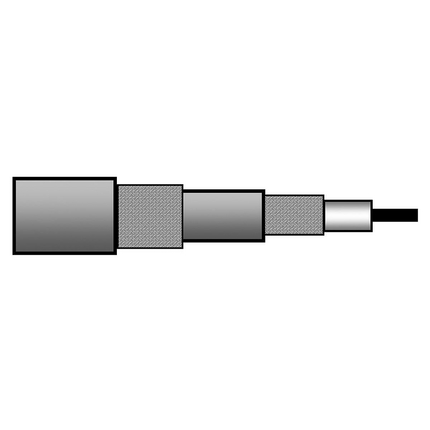

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialConstruction n x DNominal DiameterNo. of Coax
12StrandedBC - Bare Copper7x0.75 mm2.2 in1
Conductor Count: 1
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
DielectricPE - Polyethylene (Foam)9.7 mm0.2 mm
Inner Shield Material
TypeMaterialCoverage [%]Nominal Diameter
BraidBC - Bare Copper80 %10.4 mm
Inner Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
PE - Polyethylene11.9 mm0.2 mm
Outer Shield Material
TypeMaterialNominal DiameterMin. Coverage [%]
BraidBC - Bare Copper12.6 mm80 %
Outer Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
PVC - Polyvinyl Chloride14.5 mm0.2 mm

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Inner Shield DCRNominal Outer Shield DCR
6.4 Ohm/km4.1 Ohm/km
5.7 Ohm/km
Capacitance
Nom. Capacitance Conductor to Shield
55 pF/m
Impedance
Nominal Characteristic Impedance
75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
1 MHz0.4 dB/100m
10 MHz1.3 dB/100m
20 MHz1.7 dB/100m
40 MHz2.5 dB/100m
50 MHz2.8 dB/100m
60 MHz3.1 dB/100m
100 MHz4.2 dB/100m
270 MHz7 dB/100m
300 MHz7.6 dB/100m
540 MHz10.1 dB/100m
1000 MHz14.3 dB/100m
Delay
Nominal Velocity of Propagation (VP) [%]
81 %
High Freq
Frequency [MHz]Min. SRL (Structural Return Loss)
5 - 850 MHz21 dB
Screening
Frequency [MHz]Min. Screening Attenuation
30 - 850 MHz75 dB

Temperature Range

Installation Temp Range: -5°C To +70°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -40°C To +70°C

Mechanical Characteristics

Max Recommended Pulling Tension: 550 N
Min Bend Radius (W/o Pulling Strength): 150 mm

Standards

Series Type: Triax 8/11/14

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU RoHS Compliance Date (yyyy-mm-dd): 2014-04-18

Part Number

Variants
Item #ColorPutup TypeLengthEAN
7785E.02250RedReel250 m8719605014672
7785E.02500RedReel500 m8719605014689
7785E.02600RedReel600 m8719605014696
7785E.021500RedReel1,500 m8719605014665

History

Update and Revision: Revision Number: 0.160 Revision Date: 04-08-2020
Date: 2014-04-18
