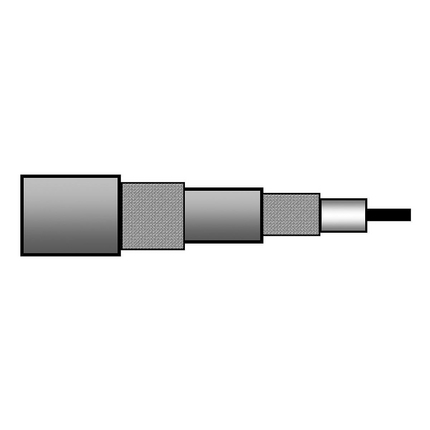

(4)Triax 14, 11 AWG (7x21) Stranded Silver plated Copper Conductor, PE Insulation, 80% Silver plated Copper Braid Shield, PE Insulation, 80% Bare Copper Braid Shield, PVC Jacket.
Life Cycle Status: Discontinued
| Suitable Applications: | Analog Video; Interconnect camera to CCU (camera control unit) |
| Series Type: | Triax 8/11/14 |
| No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|
| 1 | 12 AWG | Stranded | 2.2 in | SC - Silvered Copper |
| Element | Material | Nom. Insulation Diameter |
|---|---|---|
| Insulated Conductor | PE - Polyethylene (Foam) | 9.7 mm (0.38 in) |
| Shield Type | Material | Coverage |
|---|---|---|
| Braid | Silvered Copper (SC) | 80% |
| Material | Nom. Diameter |
|---|---|
| PE - Polyethylene | 11.9 mm (0.469 in) |
| Outer Shield Type | Material | Coverage |
|---|---|---|
| Braid | Bare Copper (BC) | 80% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 14.5 mm |
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.4 dB/100m |
| 10 MHz | 1.3 dB/100m |
| 20 MHz | 1.7 dB/100m |
| 40 MHz | 2.5 dB/100m |
| 50 MHz | 2.8 dB/100m |
| 60 MHz | 3.1 dB/100m |
| 100 MHz | 4.2 dB/100m |
| 270 MHz | 7 dB/100m |
| 300 MHz | 7.6 dB/100m |
| 540 MHz | 10.1 dB/100m |
| 1000 MHz | 14.3 dB/100m |
| Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|---|
| 5.7 Ohm/km | 6.4 Ohm/km (2.0 Ohm/1000ft) | 4.1 Ohm/km (1.2 Ohm/1000ft) | 55 pF/m (17 pF/ft) | 75 Ohm | 81% |
| Frequency | Min. Screening Attenuation |
|---|---|
| 30 - 850 MHz | 75 dB |
| Operating | Installation | Storage |
|---|---|---|
| -40°C To +70°C | -5°C To +70°C | -40°C To +70°C |
| Stationary Min. |
|---|
| 150 mm (5.9 in) |
| Max. Pull Tension: | 550 N (120 lbf) |
| Bulk Cable Weight: | 237 kg/km |
| Environmental Suitability: | Indoor (Not Riser or Plenum) |
| European Directive Compliance: | EU CE Mark |
| Update and Revision: | Revision Number: 0.205 Revision Date: 06-25-2024 |
