7784AS - VIDEO TRIAX 11 PVC


VIDEO TRIAX 11 PVC

Product Overview

Suitable Applications: Simultaneous transmission of energy and multiplex image signals; Digital or Analog Video Camera to CCU Interconnect; Permanent installation; The cable is UV-resistant and suitable for indoor and outdoor use

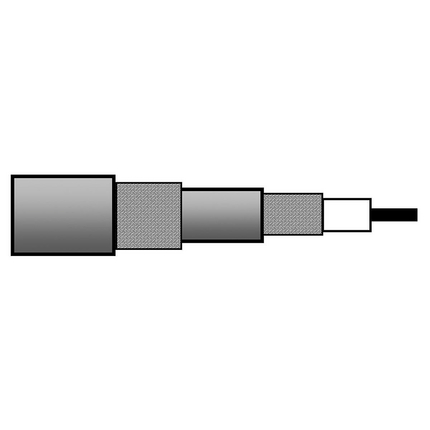

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Coax
15SolidSC - Silvered Copper1.4 in1
Conductor Count: 1
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
DielectricPE - Polyethylene (Foam)6.5 mm0.2 mm
Inner Shield Material
TypeMaterialCoverage [%]Nominal Diameter
BraidSC - Silvered Copper80 %7.1 mm
Inner Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
PE - Polyethylene8.5 mm0.2 mm
Outer Shield Material
TypeMaterialNominal DiameterMin. Coverage [%]
BraidBC - Bare Copper9.1 mm80 %
Outer Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
PVC - Polyvinyl Chloride11.2 mm0.2 mm

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Inner Shield DCRNominal Outer Shield DCR
11 Ohm/km9 Ohm/km7 Ohm/km
Capacitance
Nom. Capacitance Conductor to Shield
55 pF/m
Inductance
Nominal Inductance
0.4 µH/m
Impedance
Nominal Characteristic Impedance
75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
5 MHz1.2 dB/100m
50 MHz3.6 dB/100m
71.5 MHz4.3 dB/100m
88.5 MHz4.8 dB/100m
100 MHz5.2 dB/100m
180 MHz7.1 dB/100m
270 MHz8.8 dB/100m
750 MHz15.2 dB/100m
1000 MHz18 dB/100m
1500 MHz22 dB/100m
2000 MHz26 dB/100m
2500 MHz32 dB/100m
3000 MHz34 dB/100m
Delay
Nominal DelayNominal Velocity of Propagation (VP) [%]
410 ns/ft81 %
High Freq
Frequency [MHz]Min. SRL (Structural Return Loss)
5 - 850 MHz23 dB
Screening
Frequency [MHz]Min. Screening Attenuation
30 - 850 MHz75 dB

Temperature Range

Installation Temp Range: -5°C To +70°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -40°C To +70°C

Mechanical Characteristics

Max Recommended Pulling Tension: 300 N
Min Bend Radius (W/o Pulling Strength): 110 mm

Standards

CPR Euroclass: Eca
CENELEC Compliance: EN 50117-1
Series Type: Triax 8/11/14
Other Specification: HD-SDI, dual link HD-SDI and 3G-SDI

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Eca
EU RoHS Compliance Date (yyyy-mm-dd): 2013-06-06

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1-2

Part Number

Variants
Item #ColorPutup TypeLengthEAN
7784AS.02500RedReel500 m8719605014375
7784AS.029999RedReel950 m8719605014382
7784AS.021000RedReel1,000 m8719605014351
7784AS.021525RedReel1,525 m8719605014368

History

Update and Revision: Revision Number: 0.176 Revision Date: 04-08-2020
Date: 2013-06-06
