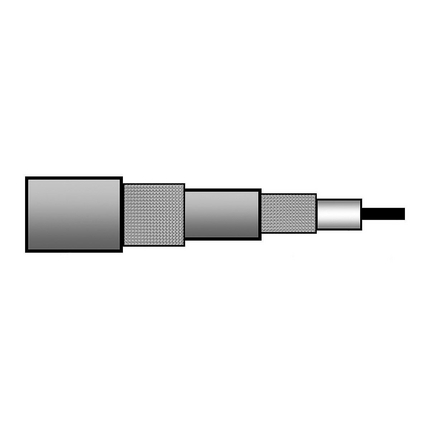

(4)Triax 8, RG-6, 18 AWG (7x28) Stranded Silver plated Copper Conductor, PE Insulation, 80% Silver plated Copper Braid Shield, PE Insulation, 80% Bare Copper Braid Shield, PUR Jacket.
Life Cycle Status: Discontinued
| Suitable Applications: | Analog Video; Interconnect camera to CCU (camera control unit) |
| Series Type: | Triax 8/11/14 |
| No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|
| 1 | 14 AWG | Stranded | 0.99 mm | SC - Silvered Copper |
| Material | Nom. Insulation Diameter |
|---|---|
| PE - Polyethylene (Foam) | 4.52 mm (0.178 in) |
| Shield Type | Material | Coverage |
|---|---|---|
| Braid | Silvered Copper (SC) | 80% |
| Material | Nom. Diameter |
|---|---|
| PE - Polyethylene | 6.6 mm (0.26 in) |
| Outer Shield Type | Material | Coverage |
|---|---|---|
| Braid | Bare Copper (BC) | 80% |
| Material | Nom. Diameter |
|---|---|
| PUR - Polyurethane | 8.4 mm (0.33 in) |
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.6 dB/100m |
| 10 Mhz | 2.2 dB/100m |
| 20 MHz | 3.2 dB/100m |
| 40 MHz | 4.6 dB/100m |
| 50 MHz | 5.1 dB/100m |
| 60 MHz | 5.6 dB/100m |
| 100 MHz | 7.5 dB/100m |
| 300 MHz | 13.8 dB/100m |
| Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|---|
| 32 Ohm/km (9.8 Ohm/1000ft) | 14 Ohm/km (4.3 Ohm/1000ft) | 9 Ohm/km (2.7 Ohm/1000ft) | 52 pF/m (16 pF/ft) | 75 Ohm | 83% |
| Frequency | Min. Screening Attenuation |
|---|---|
| 30 - 1000 MHz | 75 dB |
| Operating | Installation | Storage |
|---|---|---|
| -40°C To +70°C | -5°C To +70°C | -40°C To +70°C |
| Stationary Min. |
|---|
| 80 mm (3.1 in) |
| Max. Pull Tension: | 250 N (56 lbf) |
| Bulk Cable Weight: | 139 kg/km (93.4 lbs/1000ft) |
| Environmental Suitability: | Indoor |
| CENELEC Compliance: | EN 50117-1 |
| European Directive Compliance: | EU CE Mark |
| Update and Revision: | Revision Number: 0.269 Revision Date: 05-14-2025 |
