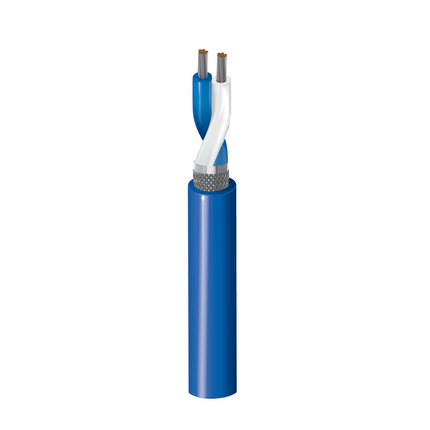

(4)DataTuff Ind SPE 40mGb 22AWG 7 STR SF/UTP PVC
| Suitable Applications: | Manufacturing cell, 1 single pair Ethernet up to 600 MHz accord. IEEE 802.3bp (1000BASE-T1) |
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 AWG | 7x0.25 mm | TC - Tinned Copper | 1 |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene | 2.2 mm (0.087 in) | White & Blue |
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 80% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 6.15 mm (0.242 in) |
| Max. Conductor DCR | Max. Capacitance Unbalance | Nom. Characteristic Impedance |
|---|---|---|
| 59.4 Ohm/km at 20°C | 160 pF/100m | 100 Ohm |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] | Max. Surface Transfer Impedance | Min. Coupling Attenuation [dB] | Nom. Characteristic Impedance [Ohm] |
|---|---|---|---|---|---|---|---|
| 1 | 3.1 | 20 | 40 | 40 | 15 | ||
| 4 | 5.6 | 23 | 40 | 28 | 11.8 | ||
| 10 | 8.7 | 25 | 35 | 20 | 10 | ||
| 20 | 12.3 | 25 | 30.5 | 14 | 20 | ||
| 30 | 15.1 | 23.5 | 27.8 | 10.5 | 30 | 85 | |
| 100 | 27.8 | 19 | 20 | 5 | 85 | ||
| 600 | 70.7 | 15.6 | 8.3 | 5 | 69.4 | ||
| 1000 | 65 | ||||||
| 100 |
| Voltage Rating |
|---|
| 300 V |
| Operating |
|---|
| -20°C To +80°C |
| Flammability / Reaction to Fire: | FT2, IEC 60332-1-2 |
| AWM Compliance: | AWM 2095, AWM I A/B |
| Data Category: | SPE 1000 Mbps |
| ISO/IEC Compliance: | IEC 61156-12 NP, UL 758 |
| Update and Revision: | Revision Number: 0.84 Revision Date: 04-29-2024 |
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| 74033E 0101000 | Black | Reel | 1,000 ft | |
| 74033E-C500 | Blue, Light | Reel | 500 m | 8719605192295 |
| 74033E 0061000 | Blue, Light | Reel | 1,000 ft |
