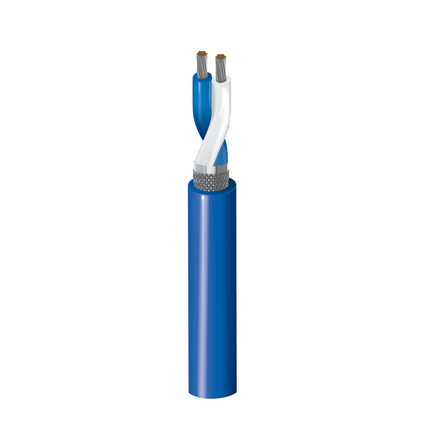

(109)DataTuff Ind SPE 40mGb 24AWG 19 STR SF/UTP PUR
| Suitable Applications: | Robotics, 1 single pair Ethernet up to 600 MHz accord. IEEE 802.3bp (1000BASE-T1) |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 24 | Stranded | TC - Tinned Copper | 1 |
| Conductor Count: | 2 |
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene (Foam) | 1.9 mm |
| Color |
|---|
| Natural & Natural/Blue |
| Type | Material | Coverage [%] |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 80% |
| Material | Nominal Diameter |
|---|---|
| PUR - Polyurethane | 5.5 mm |
| Min Elongation at Breakof Conductors: | 8 % |
| Min Elongation at Breakof Insulation: | 100 % |
| Min Elongation at Breakof Jacket: | 100 MPa |
| Min Tensile Strength of Jacket: | 10.3 MPa |
| Max. Conductor DCR | Max DCR Unbalanced Between Pairs [%] |
|---|---|
| 94.2 Ohm/km at 20°C | 2 % |
| Max. Capacitance Unbalance |
|---|
| 160 pF/100m |
| Dielectric Strength: | 2 kVac/1 min |
| Insulation Resistance: | 5000 MOhm*km |
| Insulation Resistance (Cond to Cond): | 5000 MOhm*km |
| Insulation Resistance (Cond to Screen): | 5000 MOhm*km |
| Nominal Characteristic Impedance |
|---|
| 100 Ohm |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|
| 1 MHz | 3.1 | 20 dB | 40 dB | 40 dB |
| 4 MHz | 5.6 | 23 dB | 40 dB | 28 dB |
| 10 MHz | 8.7 | 25 dB | 35 dB | 20 dB |
| 20 MHz | 12.3 | 25 dB | 30.5 dB | 14 dB |
| 30 MHz | 15.1 | 23.5 dB | 27.8 dB | 10.5 dB |
| 100 MHz | 27.8 | 19 dB | 20 dB | 5 dB |
| 600 MHz | 70.7 | 15.6 dB | 8.3 dB | 5 dB |
| 1000 MHz |
| Non-UL Voltage Rating |
|---|
| 60 V |
| Operating Temperature Range: | -40°C To +80°C |
| Max Dielectric Shrinkage: | 5 % |
| Dielectric Shrinkage Description: | Shrinkage of Insualtion (100+/2°CX1hr)/150mm |
| Cold Bend Test: | No Crack |
| Hygroscopicity: | Weight increasing not exceed 1% (for 3hrs) |
| Wicking: | The filter paper shall not wet (for 6 hrs) |
| IRM 902 Mineral Oil Resistance Test: | At 100C° x 96hr- Tensile Strength: ≥ 70% of Original Elongation at break:≥ 65% of Original |
| UV Resistance 720h per UL1581: | (300h) Tensile Strength (Mpa) - 85% of original, Elongation at break (%) - 85% of original |
| UL AWM Style Compliance: | AWM 20549 |
| CSA AWM Compliance: | AWM I A/B |
| ISO/IEC Compliance: | IEC 61156-12 NP, UL 758 |
| C(UL) Flammability: | FT2 |
| IEC Flammability: | IEC 60332-1 |
| IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: | 10 |
| IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: | 4.3 |
| Item # | Color | Put-Up Type | Length |
|---|---|---|---|
| 74032PU 0101000 | Black | Reel | 1,000 ft |
| 74032PU-C500 | Blue, Light | Reel | 500 m |
| 74032PU 0061000 | Blue, Light | Reel | 1,000 ft |
| 74032PU 1NH1000 | Teal | Reel | 1,000 ft |
| Update and Revision: | Revision Number: 0.55 Revision Date: 04-08-2022 |
