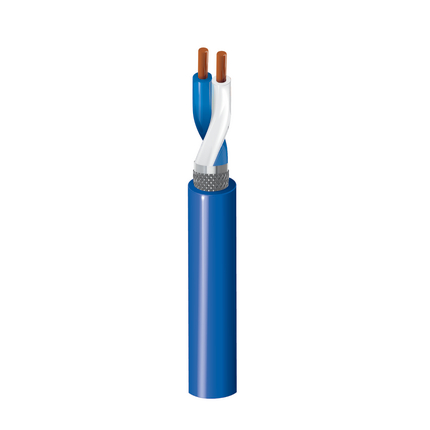

(10)DataTuff Ind SPE 40mGb 26AWG SO SF/UTP PVC
| Suitable Applications: | Tight space cabinet, machine building, 1 single pair Ethernet up to 600 MHz |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 26 | Solid | BC - Bare Copper | 1 |
| Conductor Count: | 2 |
| Material | Nominal Diameter |
|---|---|
| PP - Polypropylene | 1.3 mm |
| Color |
|---|
| Natural & Natural/Blue |
| Type | Material | Coverage [%] |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 80% |
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 4.10 mm |
| Min Elongation at Breakof Conductors: | 8 % |
| Min Elongation at Breakof Insulation: | 100 % |
| Min Elongation at Breakof Jacket: | 100 MPa |
| Min Tensile Strength of Jacket: | 10.3 MPa |
| Max. Conductor DCR | Max DCR Unbalanced Between Pairs [%] |
|---|---|
| 145 Ohm/km at 20°C | 2 % |
| Max. Capacitance Unbalance |
|---|
| 1,600 pF/km |
| Dielectric Strength: | 2 kVac/1 min |
| Nominal Characteristic Impedance |
|---|
| 100 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 3.1 dB/100m |
| 4 MHz | 5.6 dB/100m |
| 10 MHz | 8.7 dB/100m |
| 20 MHz | 12.3 dB/100m |
| 30 MHz | 15.1 dB/100m |
| 100 MHz | 27.8 dB/100m |
| 600 MHz | 70.7 dB/100m |
| Frequency [MHz] | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|
| 1 MHz | 20 dB | 40 dB | 40 dB |
| 4 MHz | 23 dB | 40 dB | 28 dB |
| 10 MHz | 25 dB | 35 dB | 20 dB |
| 20 MHz | 25 dB | 30.5 dB | 14 dB |
| 30 MHz | 23.5 dB | 27.8 dB | 10.5 dB |
| 100 MHz | 19 dB | 20 dB | 5 dB |
| 600 MHz | 15.6 dB | 8.3 dB | 5 dB |
| 1000 MHz |
| Non-UL Voltage Rating |
|---|
| 300 V |
| Operating Temp Range: | -20°C To +80°C |
| UL AWM Style Compliance: | AWM 2095 |
| CSA AWM Compliance: | AWM I A/B |
| IEC Compliance: | IEC 61156-12, UL 758 |
| C(UL) Flammability: | FT2 |
| IEC Flammability: | IEC 60332-1 |
| Item # | Color | Putup Type | Length |
|---|---|---|---|
| 74030E 0101000 | Black | Reel | 1,000 ft |
| 74030E 0061000 | Blue, Light | Reel | 1,000 ft |
| Update and Revision: | Revision Number: 0.26 Revision Date: 01-12-2021 |
