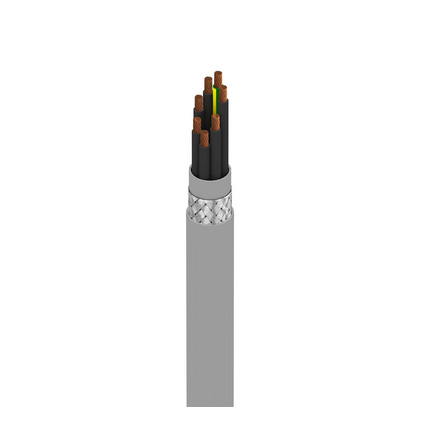

73807WS - MachFlex™, 7 C #18 Str BC, PVC Ins, OA TC Brd, PVC Jkt, PVC Jkt, AWM 2587 CLASS K


MachFlex™ for Moderate Flex, 7 Conductor 18AWG (16x30) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587 CLASS K

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor1816x30BC - Bare Copper6
Ground1816x30BC - Bare Copper1
Conductor Count: 7
Total Number of Pairs: N/A
Insulation
ElementMaterialNominal DiameterNominal Wall Thickness
ConductorPVC - Polyvinyl Chloride0.091 in0.022 in
GroundPVC - Polyvinyl Chloride
Color Chart
Color
Black and Numbered
Inner Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride.341 in.030 in
Outer Shield Material
TypeMaterialCoverage [%]
BraidTC - Tinned Copper85 %
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.439 in0.035 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
6.7 Ohm/1000ft2.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
44 pF/ft
Inductance
Nominal Inductance
.190 µH/ft
Voltage
UL Voltage Rating
600 V

Temperature Range

UL Temp Rating: 90°C
Operating Temp Range: -40°C To 90°C (Static), -5°C To 90°C (Flexing)

Mechanical Characteristics

Oil Resistance: Yes
Flex Cycle Rating: 1 Million Cycles
Bulk Cable Weight: 253 lbs/1000ft
Max Recommended Pulling Tension: 97 lbs
Min Bend Radius (Continuous Flexing): 3.5 in
Min Bend Radius/Minor Axis: 3.5 in

Standards

UL AWM Style: AWM 2587
CSA AWM Specification: AWM I/II A/B
Other Specification: VDE 0472, Section 803 Oil Test

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
CA Prop 65 (CJ for Wire & Cable): Yes

Flammability, LS0H, Toxicity Testing

CSA Flammability: FT1
UL voltage rating: 600 V RMS

Part Number

Variants
Item #ColorUPC
73807WS 008100Gray612825410232
73807WS 0081000Gray612825410249
73807WS 008500Gray612825410256

History

Update and Revision: Revision Number: 0.48 Revision Date: 08-28-2019
