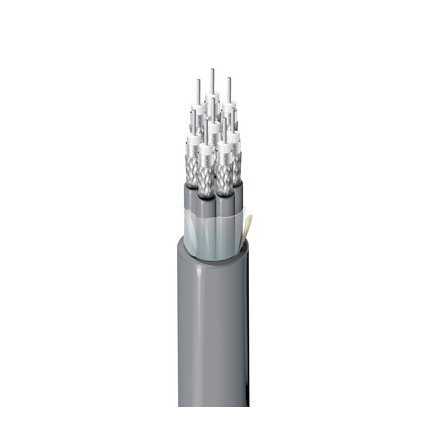

(10)DS3/DS4 Central Office Coax, 8 Coaxes, Sub-miniature RG-59, 26 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shields, PVC Inner and Outer Jackets, CMR
| Suitable Applications: | Central office wiring, DS3/DS4 interconnect, 734/735 telecommunications systems, switchboard communications |
| RG Type: | Sub-miniature 59 |
| AWG | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 26 | Solid | 0.016 in | SC - Silvered Copper |
| Material | Nom. Diameter |
|---|---|
| PE - Polyethylene (Foam) | 0.077 in |
| Layer | Inner Shield Type | Material | Material Trade Name | Coverage |
|---|---|---|---|---|
| 1 | Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% |
| 2 | Braid | Tinned Copper (TC) | 95% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.129 in |
| Table Notes: | Each jacket gray and numbered |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.447 in |
| Frequency [MHz] | Min. Return Loss [dB] |
|---|---|
| 15 - 95 MHz | 30 dB |
| Frequency | Max. Attentuation [dB/100ft] |
|---|---|
| 1 MHz | 0.6 dB/100ft |
| 1.024 MHz | 0.61 dB/100ft |
| 4.224 MHz | 1.1 dB/100ft |
| 5 MHz | 1.2 dB/100ft |
| 10 MHz | 1.7 dB/100ft |
| 17.184 MHz | 2.2 dB/100ft |
| 22.368 MHz | 2.5 dB/100ft |
| 25.92 MHz | 2.7 dB/100ft |
| 44.736 MHz | 3.6 dB/100ft |
| 50 MHz | 3.8 dB/100ft |
| 69.632 MHz | 4.5 dB/100ft |
| 77.76 MHz | 4.8 dB/100ft |
| 100 MHz | 5.5 dB/100ft |
| 137.088 MHz | 6.4 dB/100ft |
| 200 MHz | 7.8 dB/100ft |
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Shield | Nom. Impedence | Nom. Velocity |
|---|---|---|---|
| 41 Ohm/1000ft | 17.7 pF/ft | 75 Ohm | 76% |
| UL Voltage Rating |
|---|
| 300 V (CMR, CMG) |
| Operating |
|---|
| -20°C to +75°C |
| Installation Min. |
|---|
| 4.5 in |
| Bulk Cable Weight: | 114 lbs/1000ft |
| Max. Pull Tension: | 147 lbs |
| Environmental Suitability: | Indoor - Riser, Indoor |
| Sustainability: | CA Prop 65 |
| Flammability / Fire Resistance: | UL1666 Vertical Shaft |
| NEC / UL Compliance: | CMR |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s): | Telcordia Specification GR-139-CORE |
| Update and Revision: | Revision Number: 0.332 Revision Date: 09-30-2020 |
