73404WS - MachFlex™, 4 C #14 Str BC, PVC Ins, OA TC Brd, PVC Jkt, PVC Jkt, AWM 2587 CLASS K


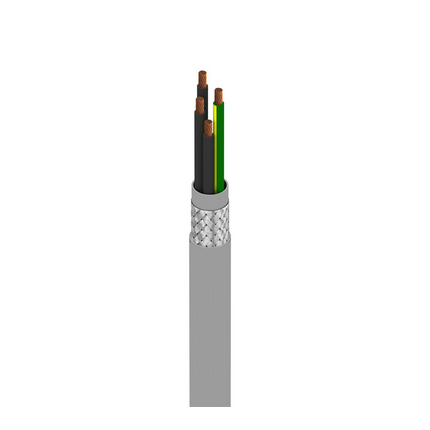

MachFlex™ for Moderate Flex, 4 Conductor 14AWG (41x30) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587 CLASS K

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Conductor(s)31441x30BC - Bare Copper
Ground11441x30BC - Bare Copper
Insulation
ElementMaterialNom. ThicknessNom. Insulation DiameterColor Code
Conductor(s)PVC - Polyvinyl Chloride0.022 in (0.56 mm)0.118 in (3.00 mm)Black and Numbered
GroundPVC - Polyvinyl Chloride0.022 in (0.56 mm)0.118 in (3.00 mm)Yellow/Green
Outer Shield
Shield TypeMaterialCoverage
BraidTinned Copper (TC)85%
Inner Jacket
SeparatorMaterialNom. ThicknessNom. Diameter
Paper TapePVC - Polyvinyl Chloride.035 in (0.89 mm).364 in (9.25 mm)
Outer Jacket
SeparatorMaterialNom. ThicknessNom. Diameter
Paper TapePVC - Polyvinyl Chloride0.047 in (1.2 mm)0.486 in
Overall Cable Diameter (Nominal): 0.486 in (12.3 mm)

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
Conductor(s)2.6 Ohm/1000ft57 pF/ft (190 pF/m)20 Amps per Conductor at 30ºC
Ground Wire2.62 Ohm/1000ft (8.60 Ohm/km)
Voltage
UL Voltage Rating
600 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
90°C-40°C To 90°C (Static), -5°C To 90°C (Flexing)
Bend Radius
Flexing Min.
3.9 in (99 mm)
Max. Pull Tension: 138 lbs (62.6 kg)
Bulk Cable Weight: 322 lbs/1000ft

Standards and Compliance

Environmental Suitability: Oil Resistance
Flammability / Reaction to Fire: FT1
AWM Compliance: AWM 2587, AWM I/II A/B
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): VDE 0472, Section 803 Oil Test

History

Update and Revision: Revision Number: 0.136 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorPutup TypeUPC
73404WS 008100GrayReel612825409526
73404WS 0081000GrayReel612825409533
73404WS 008500GrayReel612825409540
